【产品名称】高强度紫外线光固化灯

【产品型号】JYU

【产品小类】JYU金属头/ JYU陶瓷头

【产品类别】UV固化灯

【关键字】UV光固化、365nm紫外线、中波紫外线

【技术原理】高强度气体放电灯

【产品特点】

1．高强度气体放电灯，强紫外线输出、固化速度快；

2．选用进口石英玻璃管制成，紫外线透过率极强；

3．高漏磁感应变压器加起启动，光谱能量分布以365nm为中心，有效范围350nm-450nm；具有极高的功率密度和有效的紫外线波段；

4．强紫外线高压汞灯辐射，瞬时表面固化；

5．瞬时固化、省时省电、节约空间和无污染等特点；

6．灯头分为金属和陶瓷两种，其中陶瓷灯头采用耐高温线作导线，保障使用效果。

【应用范围】UV漆干燥、表面固化、印刷制版、油墨干燥、光固化、高分子化合物老化、半导体元件制作等光化学领域

【综合介绍】

高强度紫外线光固化灯，简称UV灯，属高强度气体放电灯，选用进口石英玻璃管制成，紫外线透过率极强。高漏磁感应变压器加起启动，光谱能量分布以365nm为中心，有效范围350nm-450nm，具有极高的功率密度和有效的紫外线波段。强紫外线高压汞灯辐射，瞬时表面固化，系近几年迅速发展的一项高新技术。高强度紫外线光固化灯具有瞬时固化、省时省电、节约空间和无污染等特点，特别适用于印刷制版、油墨干燥、光固化、高分子化合物老化、半导体元件制作等光化学领域。高强度紫外线光固化灯灯头分为金属和陶瓷两种，其中陶瓷灯头采用耐高温线作导线，保障使用效果。

【使用说明】

1．该灯需用相应的镇流器、触发器或漏磁变压器方能使用。

2．安装前需用纱布沾取乙醚擦拭灯管表面，以免灯管过早失透。

3．该灯有紫外线辐射，操作者须佩带墨镜，以免灼伤眼球。

4．巨源光电还承接进口设备UV光源及非标光源的制作。

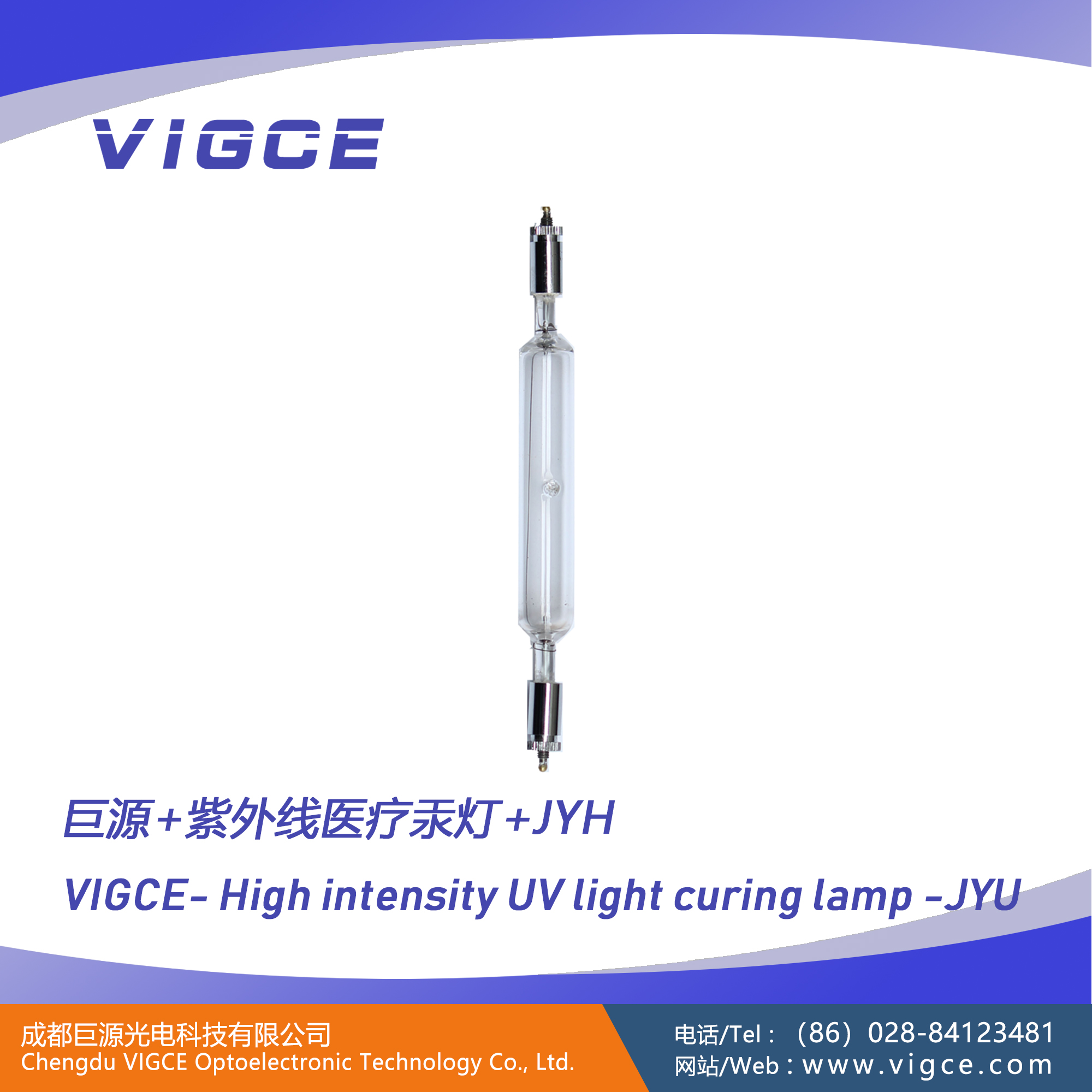

【产品照片】

【视频资料】

【规格参数】

[product name] high intensity UV light curing lamp
[product model] JYU
JYU metal head / JYU ceramic head
UV curing lamp [product category]
UV light curing, 365nm UV, and UVB
High strength gas discharge lamp
[product characteristics]
1. high strength gas discharge lamp, strong UV output, fast curing speed;
2. made of imported quartz glass tubes, the ultraviolet transmittance is very strong.
3., high magnetic leakage induction transformer is added to start up. The spectral energy distribution is centered at 365nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band.
4. strong ultraviolet high pressure mercury lamp radiation, instantaneous surface curing;
5. instantaneous curing, saving time and electricity, saving space and pollution-free, etc.
6. the lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head adopts the high temperature resistance wire as the wire to guarantee the use effect.
[application area] UV paint drying, surface curing, printing plate making, ink drying, UV curing, polymer aging, semiconductor manufacturing and other fields of photochemistry.
[comprehensive introduction]
High intensity ultraviolet light curing lamp, called UV lamp, is a high strength gas discharge lamp. It is made of imported quartz glass tube with very strong ultraviolet transmittance. The high leakage magnetic induction transformer is added to start up. The spectral energy distribution is centered at 365nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band. High pressure ultraviolet mercury lamp radiation, instant surface curing, is a rapid development of a new technology in recent years. High intensity UV curable lamp has the characteristics of instant curing, saving time and electricity, saving space and no pollution. It is especially suitable for printing, plate making, printing ink drying, light curing, polymer aging, semiconductor manufacturing and other fields. The high intensity ultraviolet light curing lamp lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head uses the high temperature resistance wire as the wire to guarantee the use effect.
[instructions]
1. the lamp should be used by the corresponding ballast, trigger or magnetic flux leakage transformer.
2. before installation needs to use gauze to dip the ether to wipe the surface of the lamp, so as to avoid the premature loss of the lamp.
3. the lamp has ultraviolet radiation, and the operator must wear sunglasses to avoid burning the eyeball.
The 4. giant source optoelectronic also carries on the production of the imported equipment UV light source and the non standard light source.
[product photo]
[video data]
[specification parameter]
