【产品名称】立式微波无极紫外UV光解废水处理器
【产品型号】JYML
【关 键 字】紫外废水净化设备,UV光解VOCs,微波无极紫外灯,水处理实验设备,微波紫外线臭氧生成
【产品类别】废水处理
【技术原理】
微波：可使细胞中极性物质随高频微波场的摆动受到干扰和阻碍, 引起微生物细胞的蛋白质、核酸等生物大分子受热凝固或变性失活, 从而导致其突变或死亡。
紫外线：253.7nm紫外线通过照射微生物的DNA，使其发生光化学反应，从而变性失活，是目前公认的最佳消毒光谱线。
臭氧( O3 )：微波激发的射线与空气中的氧气反应生成的臭氧具有强氧化作用，可有效地杀灭细菌，臭氧的弥散性可弥补由于紫外线只沿直线传播、消毒有死角的缺点。
【产品特点】
1.基于微波无极紫外灯系统所开发的水处理设备，具有无极紫外灯所拥有的：微波、紫外、臭氧三位一体；
2.小巧、精致、实验效果显著、清洗方便，适合大部分有机污水、生物污水等对紫外线、臭氧、微波敏感的实验；
3.容器、阀门以及内部结构采用304（316L可选）不锈钢、四氟乙烯连接件、铝制连接件，最大程度的避免了设备被腐蚀的情况；
4.同轴电缆传输微波技术，使用更方便、安全；
5.激励器、灯管为一个整体，可整体提出容器，方便添加物质以及清洗工作；
6.220V 50HZ市电接入，方便、安全。
【应用范围】废水处理、实验室设备应用
【综合介绍】
立式微波无极紫外灯水处理设备是基于微波无极紫外灯系统所开发的水处理设备，具有无极紫外灯所拥有的微波、紫外线、臭氧功能。适用于紫外废水净化,UV光解VOCs ,水处理实验,有机污水、生物污水处理、臭氧和微波敏感实验等。
【使用说明】
【产品照片】
【视频资料】https://pan.baidu.com/s/1miBTBuw
【规格参数】见产品参数表【同系产品】
[product name]Vertical microwave non polar ultraviolet UV photolysis wastewater processor
[product model] JYML
(keywords) ultraviolet wastewater purification equipment, UV photolysis VOCs, microwave non polar ultraviolet lamp, water treatment experimental equipment, microwave ultraviolet ozone generation
Waste water treatment
[technical principle]
Microwave can make the polar substances in the cell interfere with and obstruct the oscillating of the high frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
Ultraviolet: 253.7nm ultraviolet is the best disinfection spectral line recognized by photochemical reaction and deactivation of DNA by irradiating the microorganism's ultraviolet.
Ozone (O3): the ozone generated by the microwave excited reaction with the oxygen in the air has strong oxidation effect, which can effectively kill bacteria. The dispersion of ozone can make up for the shortcoming of ultraviolet rays spreading along the straight line and sterilizing dead ends.
[product characteristics]
1. the water treatment equipment based on the microwave non polar ultraviolet lamp system has the trinity of microwave, ultraviolet and ozone.
2. small, delicate, significant experimental results, convenient cleaning, suitable for most organic sewage, biological sewage and other ultraviolet, ozone, microwave sensitive experiments;
3. containers, valves and the internal structure of the 304 (316L optional), stainless steel fittings, aluminum tetrafluoroethylene connector, the maximum to avoid the corrosion of equipment;
4. microwave transmission adopted the company's invention patent: coaxial cable transmission microwave technology, the use of more convenient and safe;
5. the actuator and the lamp tube are a whole, and the container can be put forward as a whole, which is convenient to add material and the cleaning work.
6.220V 50HZ city electricity access, convenient and safe.
Application of wastewater treatment and laboratory equipment
[comprehensive introduction]
The vertical microwave electrodeless ultraviolet lamp water treatment equipment is a water treatment equipment developed on the basis of the microwave electrodeless ultraviolet lamp system. It has the function of microwave, ultraviolet and ozone possessed by the electrodeless ultraviolet lamp. It is suitable for ultraviolet wastewater purification, UV photolysis VOCs, water treatment experiment, organic sewage, biological sewage treatment, ozone and microwave sensitive experiment.
[instructions]

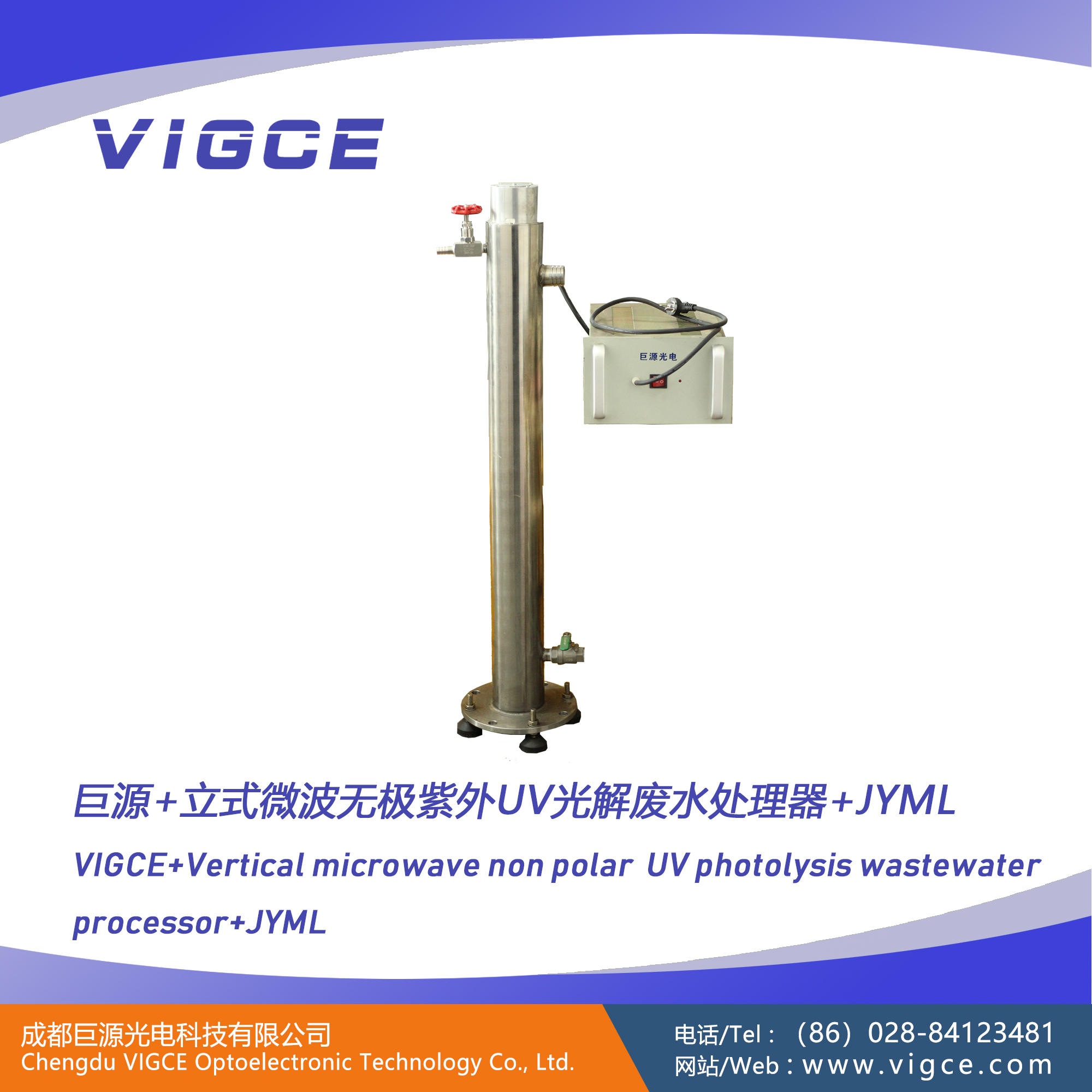

[product photo]
[video data] https://pan.baidu.com/s/1miBTBuw
[specification parameter] see product parameter sheet [homologous product]
∷
