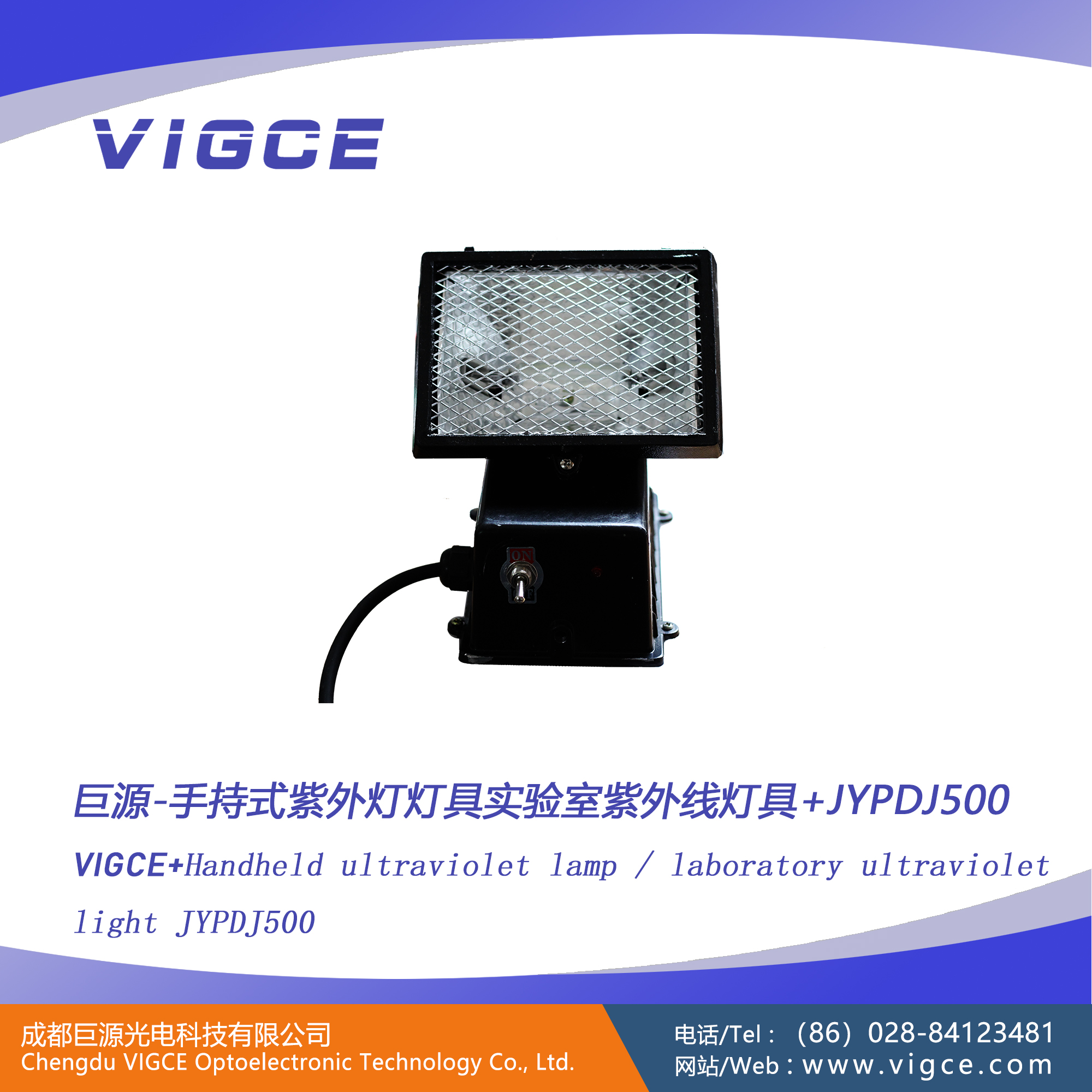

【产品名称】手持式紫外灯灯具/实验室紫外线灯具

【产品型号】JYPDJ500

【产品小类】可替换光源灯具。可替换类型：500WUV灯、500W碘镓灯、250W铁灯

【产品类别】固化灯灯具/实验室灯具

【关键字】UV光固化、365nm 、420nm紫外线、中长波紫外线

【技术原理】高强度气体放电灯

【产品特点】

1．高强度气体放电灯，强紫外线输出、固化速度快；

2．选用进口石英玻璃管制成，紫外线透过率极强；

3．高漏磁感应变压器加起启动，光谱能量分布以365nm/420nm为中心，有效范围350nm-450nm；具有极高的功率密度和有效的紫外线波段；

4．强紫外线高压灯辐射，瞬时表面固化；

5．瞬时固化、省时省电、节约空间和无污染等特点；

6．手持式设计，小巧方便，可以应用于狭窄场合；

7．灯头分为金属和陶瓷两种，其中陶瓷灯头采用耐高温线作导线，保障使用效果。

【应用范围】UV漆干燥、UV胶粘合、表面固化、印刷制版、油墨干燥、光固化、高分子化合物老化、实验室应用、半导体元件制作等光化学领域

【综合介绍】

高强度UV灯/碘镓灯/铁灯，属高强度气体放电灯，选用进口石英玻璃管制成，紫外线透过率极强。高漏磁感应变压器加起启动，光谱能量分布以365nm//420nm为中心，有效范围350nm-450nm，具有极高的功率密度和有效的紫外线波段。强紫外线高压汞灯辐射，瞬时表面固化，系近几年迅速发展的一项高新技术。高强度紫外线光固化灯具有瞬时固化、省时省电、节约空间和无污染等特点，特别适用于印刷制版、油墨干燥、光固化、高分子化合物老化、实验室应用、半导体元件制作等光化学领域。高强度紫外线光固化灯灯头分为金属和陶瓷两种，其中陶瓷灯头采用耐高温线作导线，保障使用效果。

【使用说明】

1．该灯需用相应的镇流器、触发器或漏磁变压器方能使用（已配套）。

2．安装前需用纱布沾取乙醇擦拭灯管表面，以免灯管过早失透。

3．请勿用于高温、潮湿环境。使用后，放置于阴凉干燥处保存。

4．该灯有紫外线辐射，操作者须佩带墨镜，以免灼伤眼球。

5．巨源光电还承接进口设备UV光源及非标光源的制作。

【产品参数】

灯罩尺寸：长17cm*宽12cm*深8cm

电源箱尺寸：长17cm*宽10cm*深8cm

可按照需求，定制各种尺寸灯具

[product name] handheld ultraviolet lamps / laboratory ultraviolet lamps
[product model] JYPDJ500
[product small class] can be replaced by light source. Replaceable types: 500WUV lamp, 500W iodide gallium lamp, 250W iron lamp
[product category] lamp / laboratory lamps
UV light curing, 365nm, 420nm ultraviolet ray, and medium long wave ultraviolet ray
High strength gas discharge lamp
[product characteristics]

1. high strength gas discharge lamp, strong UV output, fast curing speed;
2. made of imported quartz glass tubes, the ultraviolet transmittance is very strong.
3., high magnetic leakage induction transformer is added to start up. The spectral energy distribution is centered at 365nm/420nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band.
4. strong ultraviolet light radiation, instantaneous surface curing;
5. instantaneous curing, saving time and electricity, saving space and pollution-free, etc.
6. hand-held design, small and convenient, can be applied to narrow occasions;
7. the lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head adopts the high temperature resistance wire as the wire to guarantee the use effect.

[application] UV paint drying, UV curing, bonding, surface printing, ink drying, curing, aging, polymer applications, semiconductor element fabrication Laboratory of photochemistry

[comprehensive introduction]

High strength UV lamp / iodide lamp / iron lamp is a high strength gas discharge lamp. It is made of imported quartz glass tube with very strong ultraviolet transmission rate. The high leakage magnetic induction transformer is added to start up. The spectral energy distribution is centered at 365nm//420nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band. High pressure ultraviolet mercury lamp radiation, instant surface curing, is a rapid development of a new technology in recent years. High intensity UV curable lamp has the characteristics of instant curing, saving time and electricity, saving space and no pollution. It is especially suitable for printing, plate making, printing ink drying, light curing, polymer aging, laboratory application, semiconductor manufacturing and other fields. The high intensity ultraviolet light curing lamp lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head uses the high temperature resistance wire as the wire to guarantee the use effect.

[instructions]

1. the lamp should be used with the corresponding ballast, trigger or magnetic flux leakage transformer.
2. before installation, use gauze to smear the surface of the lamp to wipe the lamp, so as to avoid the premature loss of the lamp.
3. do not use in high temperature, wet environment. After use, keep it in a cool and dry place.
4. the lamp has ultraviolet radiation, and the operator must wear sunglasses to avoid burning the eyeball.
5. giant source optoelectronic also carries on the production of the imported equipment UV light source and the non standard light source.
[product parameters]
Lampshade size: long 17cm* width 12cm* deep 8cm
Power box size: long 17cm* width 10cm* deep 8cm
Various sizes of lamps and lanterns can be customized according to demand
