Microwave Electrodeless UV Lamp

  • Microwave Ultraviolet Power Unit
Microwave Ultraviolet Power Unit

Microwave Ultraviolet Power Unit

  • Microwave ultraviolet generator for cable transmission
  • Microwave non polar ultraviolet light pump
  • Ultraviolet generator
  • Cable transmission application
  • Product description: The application of microwave electrodeless ultraviolet pump cable transmission is based on the development of JYM microwave electrodeless ultraviolet lamp system. A power box has two sets of power sup
  • INQUIRY
About this Product:


Ultraviolet light is energy-rich light with a wavelength of 200 – 400 nanometres (nm). UV light is very versatile and can be used for disinfecting water, destroying harmful microorganisms in other liquids, on surfaces, and in air. The intensive UVC radiation, most strongly in the wavelength range of 254 nm, reaches the microorganisms and impacts directly on their DNA. By changing the DNA the cell division of the microorganism is interrupted – it can no longer reproduce itself and thus loses its pathogenic effect. With UV technology it is possible to destroy more than 99.99% of all pathogens within seconds, without addition of chemicals, without harmful side effects, inexpensively, highly efficiently and absolutely reliably.


How UV disinfection works with liquids


UV disinfection is a purely physical process. The light necessary for UV disinfection is generated in special UV lamps. A watertight tube made of quartz glass which allows the UV light to pass through surrounds each lamp. The liquid to be disinfected runs past the quartz tubing, being irradiated by the UV light. The number of UV lamps employed vary according to amount, flow rate and transmittance of the medium. VIGCE UV systems are suited for the disinfection of drinking water, process water, waste water, salt water, ultrapure water and other translucent fluids, e. g. sugar syrup.


Reduction of Pollutants with UV Light


Ultraviolet light is also suitable for oxidation and there-fore for the reduction of undesirable substances in water. For example, UV light with a wavelength of 185 nm oxidizes hydrocarbons, chlorine, NDMA and reduces TOC values. In combination with ozone and peroxide UV-light can additionally be used for advanced oxidation processes (AOP) for degradation of persistent pollutants from drinking water or wastewater.

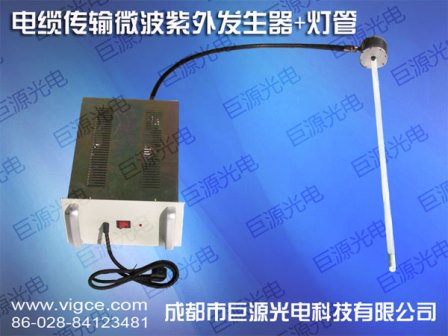

Microwave Ultraviolet Power unit

UV photodissociation --- JYM microwave power unit +MWL

Microwave:

The polarity of the cells in the motion of the material with high frequency microwave field interference and obstacles, the cause microorganism cells of biological macromolecules such as protein, nucleic acid heat coagulation or degeneration inactivation, which can lead to the mutation or death.

Ultraviolet (uv) :

253.7 nm ultraviolet irradiation by microbial DNA, make its photochemical reaction, thus modified inactivation, is recognized as one of the best disinfection spectral lines.

Ozone (O3) :


Rays react with oxygen in the air of microwave excitation generated ozone has strong oxidation, can effectively kill bacteria, diffuse because ultraviolet light can be made up of ozone only along a straight line dissemination, disinfection has the defects of a corner.

Output power  : 1000w

Supply voltage : 220v * 50Hz

Power size : 360mm*265mm*175mm

Coaxial cable longth : 1000 mm (and Arbitrary length )

LAMP(MWL) : 300mm ;400mm;600mm;800mm;1000mm;1200mm;1500mm;
