[product name] fixed lamp tube microwave non - ultraviolet light pump
[product model] JYM+
Microwave non polar ultraviolet lamp system, fixed lamp tube microwave non auroral pump
[product category] UV optical pump
Microwave non polar ultraviolet lamp system
Research and design of microwave electrodeless UV lamp system based on the microwave, UV and ozone three-in-one effect on processing material, the use of UV photolysis, photocatalysis and oxidation, photolysis and VOCS interference cell synthesis, achieve sterilization and accelerate the decomposition of organic matter, used for purifying various toxic odor, odor pollution, etc. gas and liquid.
1. microwave: the polar materials in the cell will be interfered with and obstructed by the vibration of the high-frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
2. ultraviolet: the ultraviolet spectrum of 253.7nm is the best disinfecting spectrum line by irradiating the DNA of microorganism to make photochemical reaction and deactivation.
3. ozone (O3): the microwave excitation spectrum is the strongest oxidant known for the strong oxidation of the ozone generated by the reaction of 185nm's rays with the oxygen in the air. From hydrocarbon to carboxylic acid, many organic substances can be decomposed, which can effectively kill all kinds of bacterial pathogens. The dispersion of ozone can make up for the shortcoming of ultraviolet rays spreading along the straight line and sterilizing dead ends.
[product characteristics]
1. flexible anticorrosion material sealing exciter, antifouling and waterproof;
2. high frequency microwave damage cells, resulting in the death of 3. Hospital of microbial mutation; 253.7nm UV damage microbial DNA, potent ozone disinfection and sterilization; 4. (O3) as a strong oxidant, no dead bacteria sterilization; 5. to carboxylic acid from the hydrocarbon to many types of organic compounds can be decomposed, photolysis ability;
Light cleaning, printing, surface modification of materials, surface deoiling, irradiation, waste water treatment and waste gas treatment
[comprehensive introduction]

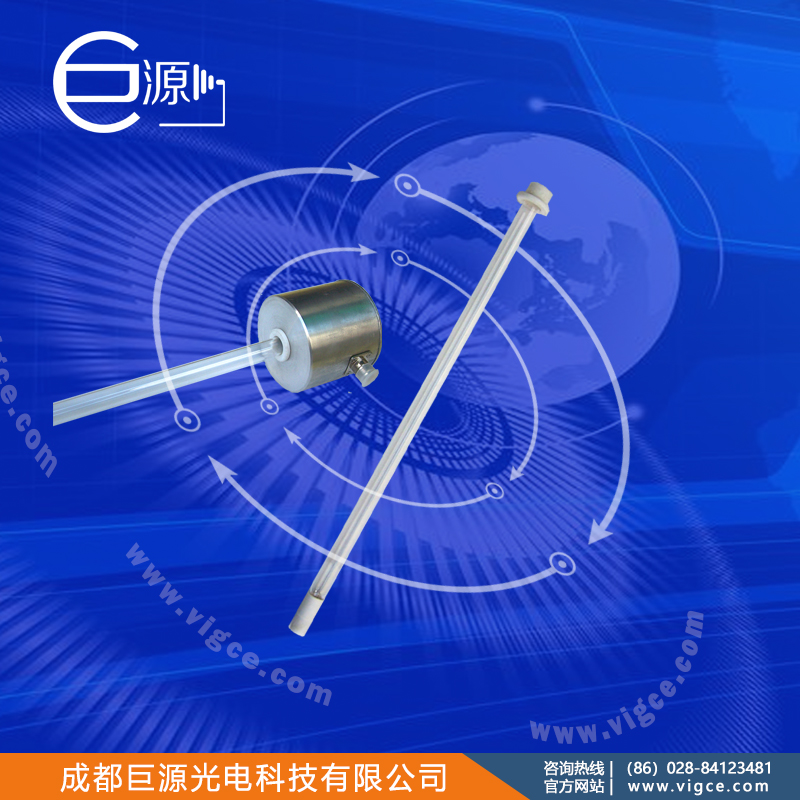

The fixed lamp tube microwave non polar ultraviolet pump (JYM+) is based on the I generation cable transmission microwave non polar ultraviolet pump (JYM) system design and development. The lamp tube is added to the flexible anticorrosion material and can be used to connect the exciter with the special design interface. The sealing effect can be formed between the lamp tube and the exciter, so as to prevent the waste gas and waste water from entering the internal of the exciter.
[instructions]
[product photo]
[video data]
[homologous product] [specification parameter] see product parameter table
