Microwave Electrodeless UV Equipment

  • VIGCE+Cable free microwave non polar ultraviolet pump+JYM-U
VIGCE+Cable free microwave non polar ultraviolet pump+JYM-U

VIGCE+Cable free microwave non polar ultraviolet pump+JYM-U

  • Microwave non polar ultraviolet light pump
  • Microwave generator
  • Ultraviolet generator
  • Ultraviolet treatment module
  • Product description: Microwave electrodeless ultraviolet pump and cable free application is based on the development of JYM microwave electrodeless ultraviolet lamp system. It has unique cable less design, more concentrat
  • INQUIRY

巨源+无电缆微波无极紫外光泵+JYM-U

[product name]. Cable free microwave non polar ultraviolet pump
[product model] JYM-U
[Keywords] no cable microwave non polar ultraviolet light pump, microwave generator, ultraviolet generator, UV processing module, high energy short wave ultraviolet ray
[product category] UV optical pump
[technical principle]
Research and design of microwave electrodeless UV lamp system based on the microwave, UV and ozone three-in-one effect on processing material, the use of UV photolysis, photocatalysis and oxidation, photolysis and VOCS interference cell synthesis, achieve sterilization and accelerate the decomposition of organic matter, used for purifying various toxic odor, odor pollution, etc. gas and liquid.
1. microwave: the polar materials in the cell will be interfered with and obstructed by the vibration of the high-frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
2. ultraviolet: the ultraviolet spectrum of 253.7nm is the best disinfecting spectrum line by irradiating the DNA of microorganism to make photochemical reaction and deactivation.
3. ozone (O3): the microwave excitation spectrum is the strongest oxidant known for the strong oxidation of the ozone generated by the reaction of 185nm's rays with the oxygen in the air. From hydrocarbon to carboxylic acid, many organic substances can be decomposed, which can effectively kill all kinds of bacterial pathogens. The dispersion of ozone can make up for the shortcoming of ultraviolet rays spreading along the straight line and sterilizing dead ends.
[product characteristics]
1. without cable design, the energy is more concentrated and the processing ability is stronger.
2. high frequency microwave damage cells, resulting in the death of 3. Hospital of microbial mutation; 253.7nm UV damage microbial DNA, potent ozone disinfection and sterilization; 4. (O3) as a strong oxidant, no dead bacteria sterilization; 5. to carboxylic acid from the hydrocarbon to many types of organic compounds can be decomposed, photolysis ability;
Light cleaning, printing, surface modification of materials, surface deoiling, irradiation, wastewater treatment, waste gas treatment, UV photolysis, and photolysis VOCS
[comprehensive introduction]
Microwave electrodeless ultraviolet pump and cable free application is based on the development of JYM microwave electrodeless ultraviolet lamp system. It has unique cable less design, more concentrated energy and stronger processing power. As a microwave and ultraviolet generator, it is used for UV photodegradation, photocatalysis, photooxidation, and UV photolysis of VOCs, etc.
[instructions]

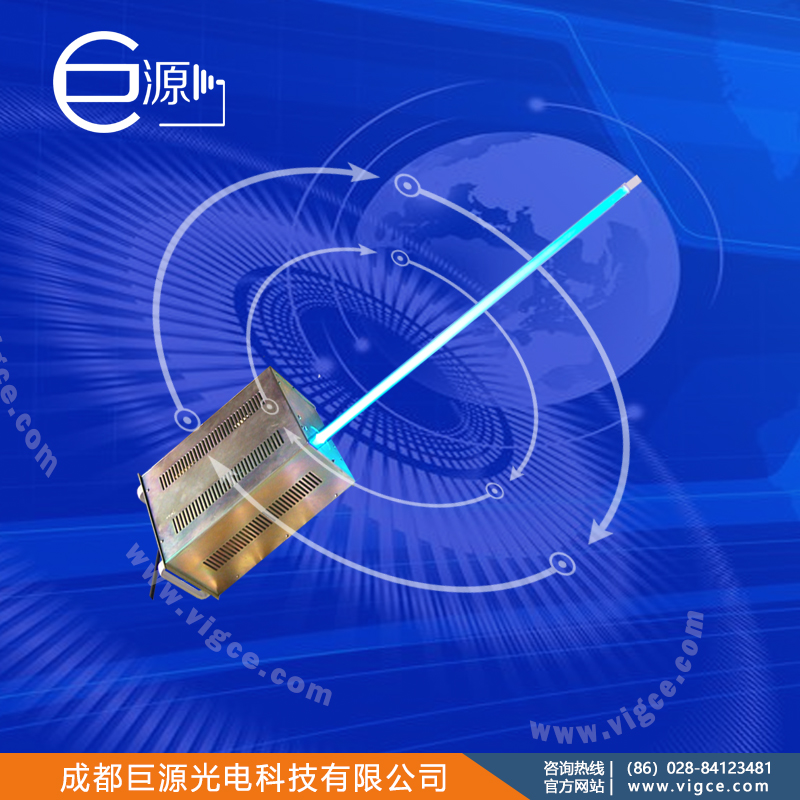

[product photo]
[video data]
[homologous product] [specification parameter] see product parameter table
