[product name] 24 couplet microwave free UV photolysis exhaust purifier
[product model] JYM24
[Key words] ultraviolet exhaust treatment equipment, ozone waste gas treatment equipment, microwave generator, microwave ultraviolet electrodeless lamp system, large flow waste treatment equipment, photo oxidation, photocatalysis, electrodeless ultraviolet lamp, UV photolysis VOC equipment.
Waste gas treatment
A complete system of microwave ultraviolet light free lamp
[product characteristics]
1. photolysis systems are more than 24 sets, including 24 groups of separate control power and 6 microwave non - polar ultraviolet lamps.
2. independent control of the optical oxygen system: the 24 sets of systems can be opened at the same time, and can be controlled separately.
3. open front and back interface: the interface is convenient to connect the PLC system.
4. strong internal upgrade space: can be added with ultraviolet, ozone and other online monitoring devices inside the electronic control box.
5. fully sealed parallel pipeline: the concentration of ultraviolet radiation, the large amount of ozone production, the short treatment time of the gas and the large amount of air handling;
The 6. volume is suitable for high safety: small energy consumption, small area, good encapsulation, no microwave and ultraviolet leakage.
[application range]
[comprehensive introduction]

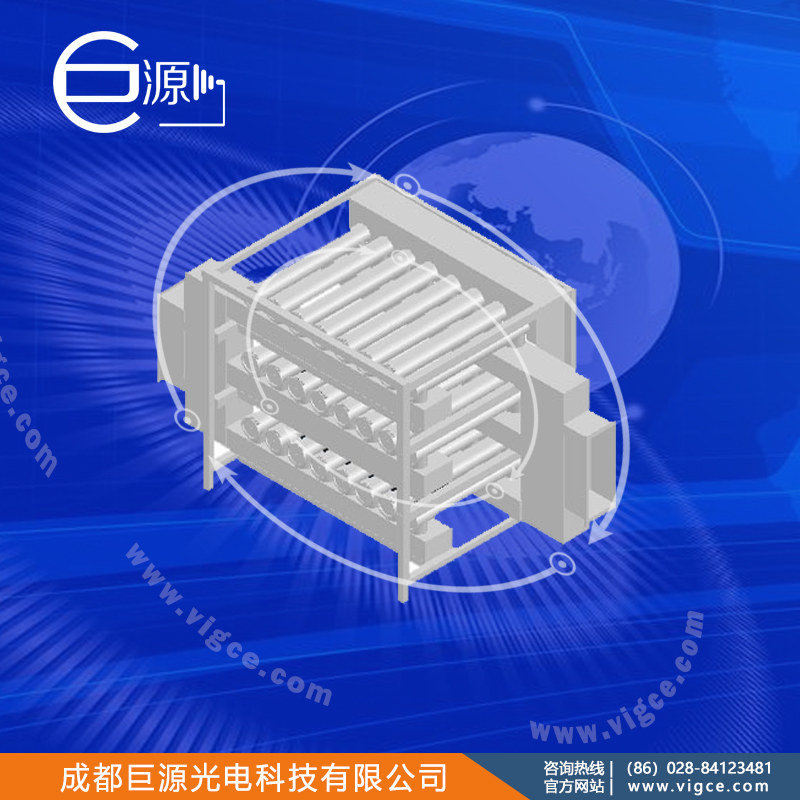

The 24 microwave endless UV photolysis exhaust gas purifier is a complete set of gas processing equipment based on the microwave ultraviolet electrodeless lamp system, which includes 24 independent power supply and 24 lamp tubes. The 24 power supply is integrated into the electric control box, 24 cables are connected from the electric control box, the cable connects 24 exciter, the actuator is welded on the food grade stainless steel pipeline, and 24 lamps are fixed in the pipeline respectively. High integration, large amount of processing, treatment time, treatment effect is remarkable. The device is already a complete gas processing unit. Only a pre gas collection device, a water removal device, a dust removal device and a subsequent exhaust pipe are needed to form a complete large volume exhaust gas treatment system.
[instructions]
[product photo]
[video data]
[homologous products] JYM6 JYM4
[specification parameter]
