[product name]Vertical microwave non polar ultraviolet UV photolysis wastewater processor

[product model] JYML
(keywords) ultraviolet wastewater purification equipment, UV photolysis VOCs, microwave non polar ultraviolet lamp, water treatment experimental equipment, microwave ultraviolet ozone generation
Waste water treatment
[technical principle]
Microwave can make the polar substances in the cell interfere with and obstruct the oscillating of the high frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
Ultraviolet: 253.7nm ultraviolet is the best disinfection spectral line recognized by photochemical reaction and deactivation of DNA by irradiating the microorganism's ultraviolet.
Ozone (O3): the ozone generated by the microwave excited reaction with the oxygen in the air has strong oxidation effect, which can effectively kill bacteria. The dispersion of ozone can make up for the shortcoming of ultraviolet rays spreading along the straight line and sterilizing dead ends.
[product characteristics]
1. the water treatment equipment based on the microwave non polar ultraviolet lamp system has the trinity of microwave, ultraviolet and ozone.
2. small, delicate, significant experimental results, convenient cleaning, suitable for most organic sewage, biological sewage and other ultraviolet, ozone, microwave sensitive experiments;
3. containers, valves and the internal structure of the 304 (316L optional), stainless steel fittings, aluminum tetrafluoroethylene connector, the maximum to avoid the corrosion of equipment;
4. microwave transmission adopted the company's invention patent: coaxial cable transmission microwave technology, the use of more convenient and safe;
5. the actuator and the lamp tube are a whole, and the container can be put forward as a whole, which is convenient to add material and the cleaning work.
6.220V 50HZ city electricity access, convenient and safe.
Application of wastewater treatment and laboratory equipment
[comprehensive introduction]
The vertical microwave electrodeless ultraviolet lamp water treatment equipment is a water treatment equipment developed on the basis of the microwave electrodeless ultraviolet lamp system. It has the function of microwave, ultraviolet and ozone possessed by the electrodeless ultraviolet lamp. It is suitable for ultraviolet wastewater purification, UV photolysis VOCs, water treatment experiment, organic sewage, biological sewage treatment, ozone and microwave sensitive experiment.
[instructions]

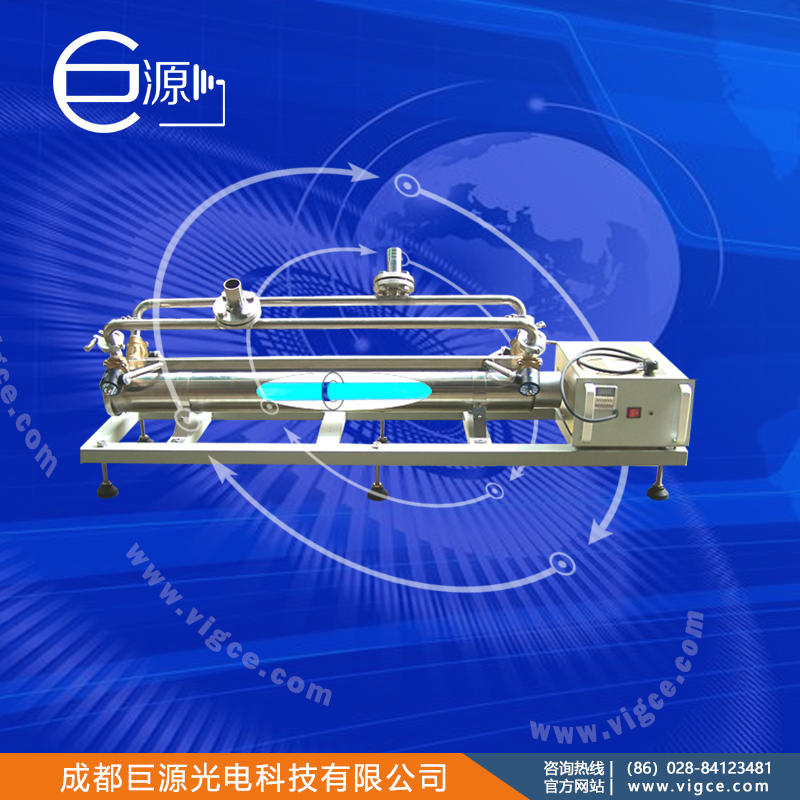

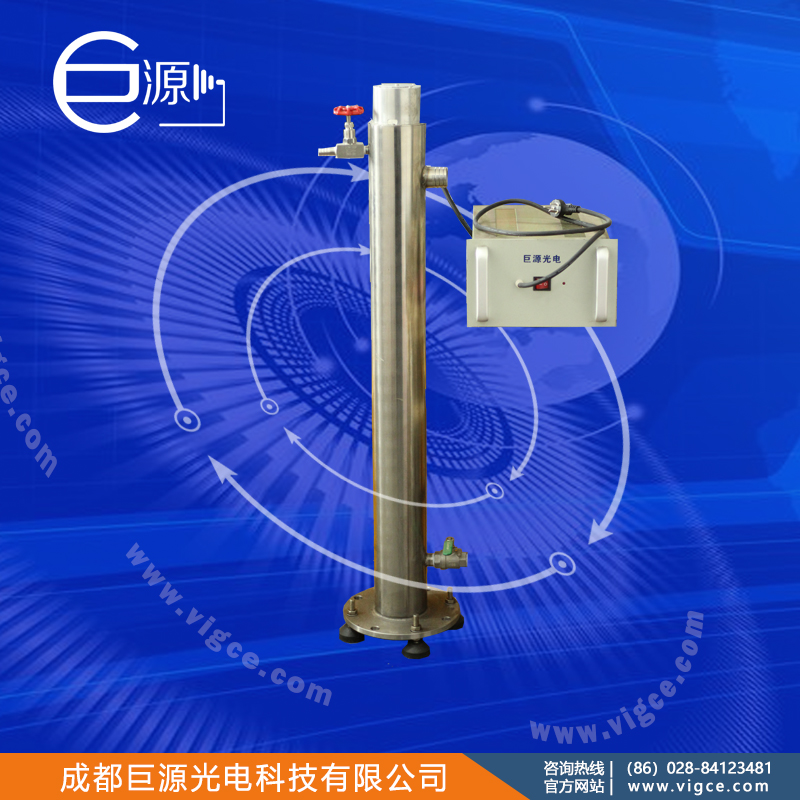

[product photo]
[video data] https://pan.baidu.com/s/1miBTBuw
[specification parameter] see product parameter sheet [homologous product]
