  • 产品描述:JYJG 150/ JYJG 70紫外线UV光谱校准仪是成都巨源光电研发的一款紫外线UV灯测试仪器,可用于实验室光谱校准,紫外光谱测试校准,一体化集成,方便使用。可根据光谱线需要,更换:铁灯,碘镓灯,无极灯。
  • 在线订购

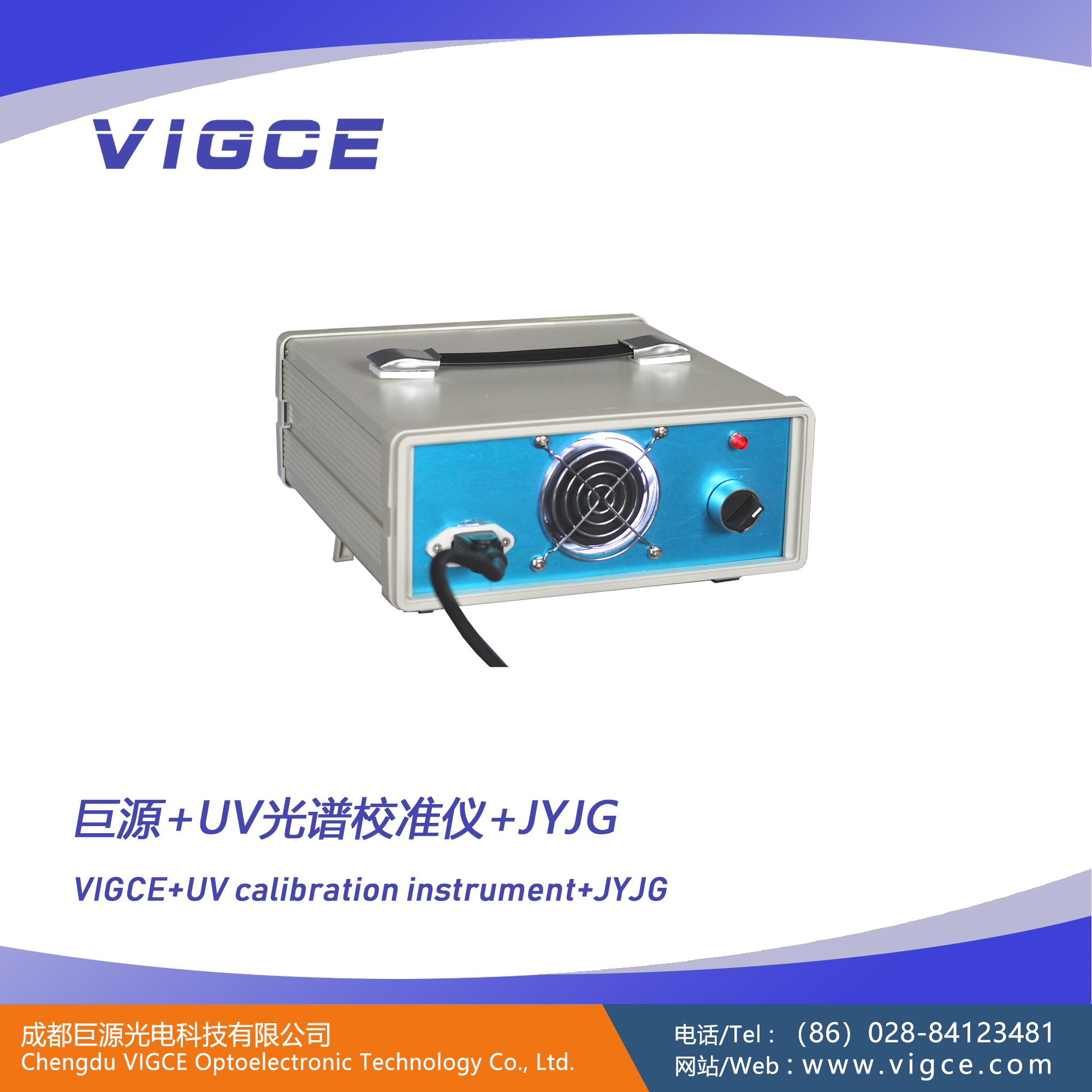

巨源+UV光谱校准仪+JYJG

09.《巨源+UV光谱校准仪+JYJG+说明书》

【产品名称】UV光谱校准仪

【产品型号】JYJG150/JYJG70

【关 字】光谱验证、光谱校准、光谱验证

【产品类别】实验仪器

【技术原理】UV紫外灯系统

【产品特点】

1. UV光谱校准仪光谱稳定;2.集成一体设计,外形小巧、方便携带; 3.寿命长,方便耐用。

【应用范围】UV光谱校准仪,适用于实验室以及生产场所的特定紫外波长对比、校准工作

【综合介绍】

UV光谱校准仪(紫外线光谱校准仪),是成都巨源光电科技有限公司在紫外光电光源领域的又一创新产品。利用巨源光电10多年光电技术,结合客户需求,结合使用便捷性开发的一款集成产品。紫外UV光谱校准仪适用于实验室以及厂家企业的特定紫外波长对比与校准。产品具有光谱稳定,外形小巧、便携,寿命长的优点方便耐用。体积仅为250mm*250mm*120mm便于各类型的实验室使用。紫外UV光谱校准仪采用标准220V电压,功率分为150W和70W,方便调整选用。用户可根据光谱线需要,方便的更换为铁灯碘镓灯,无极灯。现有两个产品型号,分别为JYJG150/JYJG70,可提供150W和70W功率两种选择。由于精确度高,使用方便,美观小巧,现已被西安一兵器研究所选用,作为光学校准仪器。

【使用说明】

1. 请先确认电源箱的开关已关闭;2. 电源箱上的电线接入220V交流电,待风扇完全启动后,即可打开电源开关;3. 约5-10秒后,灯管亮起。

【产品照片】【视频资料】【同系产品】【规格参数】电压220V 250mm*250mm*120mm


巨源+UV光谱校准仪+JYJG

[product name] UV spectral calibrator
[product model] JYJG150/JYJG70
Spectral verification, spectral calibration and spectral verification
[product category] experimental instruments
UV ultraviolet lamp system
[product characteristics]
1. UV spectral calibrator spectrum stability; 2. integrated design, compact shape, convenient to carry; 3. life long, convenient and durable.
[application range] UV spectral calibrator is suitable for specific UV wavelengths contrast and calibration in laboratories and production sites
[comprehensive introduction]
UV spectral calibrator (UV spectral calibrator) is another innovative product in the field of UV light source in Chengdu giant source Optoelectronic Technology Co., Ltd. Using giant source optoelectronic 10 years photoelectric technology, combined with customer needs, combined with the use of convenience developed an integrated product. The UV UV spectral calibrator is suitable for the specific UV wavelength contrast and calibration of the laboratories and manufacturers. The product has the advantages of convenient and durable with the advantages of stable spectrum, small shape, portable and long life. The volume is only 250mm*250mm*120mm for all types of laboratory use. The UV UV spectral calibrator uses standard 220V voltage, and the power is divided into 150W and 70W, which is convenient for adjustment and selection. The user can easily change to the iron lamp, the iodine gallium lamp, the non pole lamp, according to the spectral line needs. The existing two product models, respectively JYJG150/JYJG70, can provide two options for 150W and 70W power. Because of its high accuracy, easy to use and small beauty, it has been selected by the Xi'an Military Research Institute as an optical calibration instrument.
[instructions]
1., please confirm that the switch of the power box is closed. The wire on the 2. power box is connected to the 220V alternating current. After the fan is fully activated, it can turn on the power switch. After 3. seconds, the lamp is on.
[product photo] [video data] [specifications] voltage 220V 250mm*250mm*120mm
