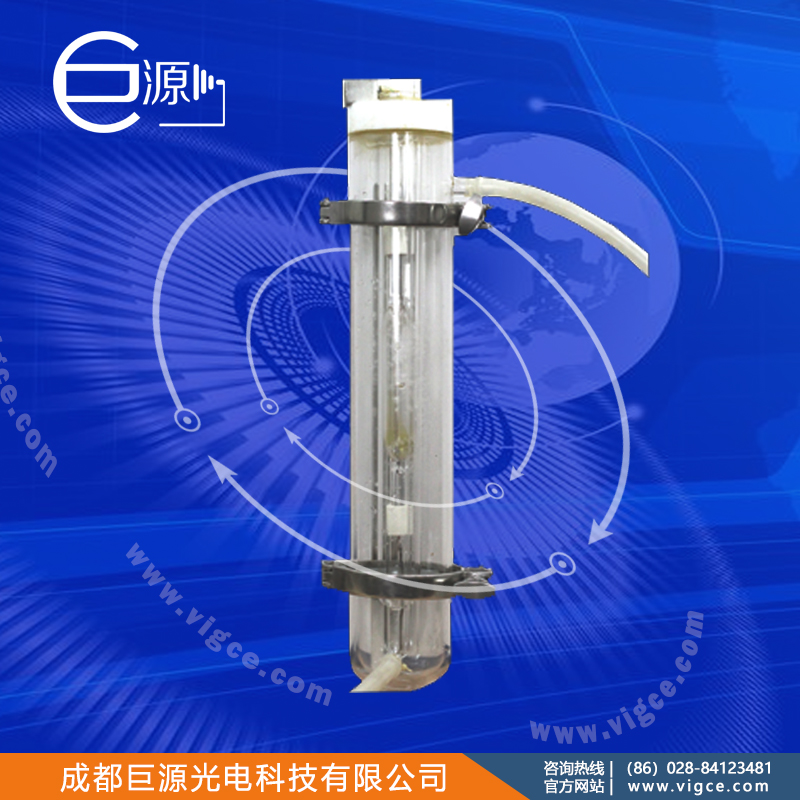

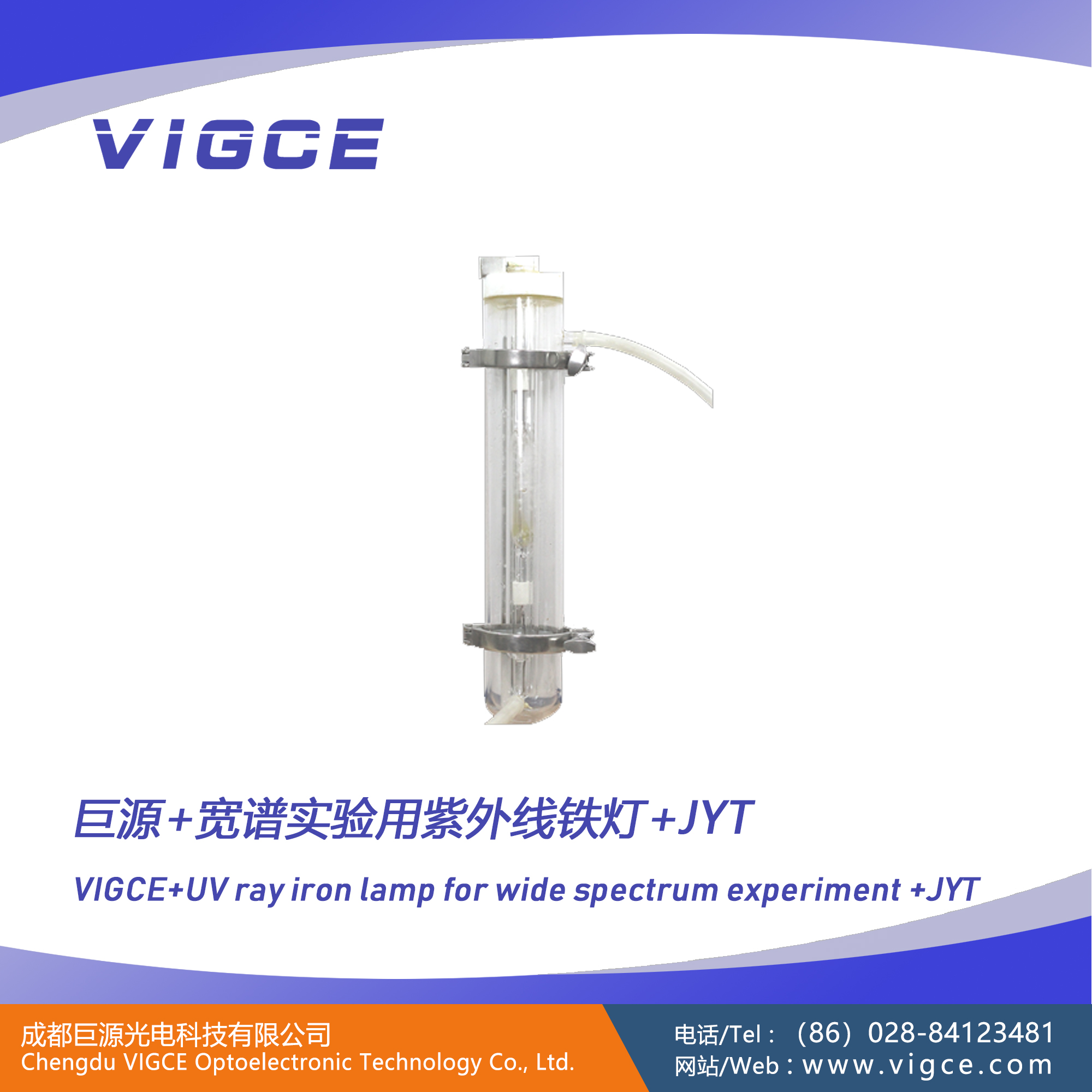

【产品名称】宽谱实验用紫外线铁灯
【产品型号】JYT
【关 键 字】铁灯,高强度紫外线,UV漆固化,短波紫外线
【产品类别】UV固化灯
【技术原理】金属卤化物放电灯
【产品特点】1.小巧、方便,效率高;
2.巨源光电生产的铁灯和铁灯液体(气体)实验装置模块可满足各种需要照射紫外线的场合,具有可处理复杂成分液体/气体的能力。
3.纯石英管形成狭窄缝隙,使得液体(气流)能均匀、轻薄的被短波紫外线照射。(无极灯产生的臭氧,也可加入反应装置,继续反应。
【应用范围】UV漆干燥固化、特定紫外线的实验室应用、3D打印机、印刷、UV干燥、刑事侦查

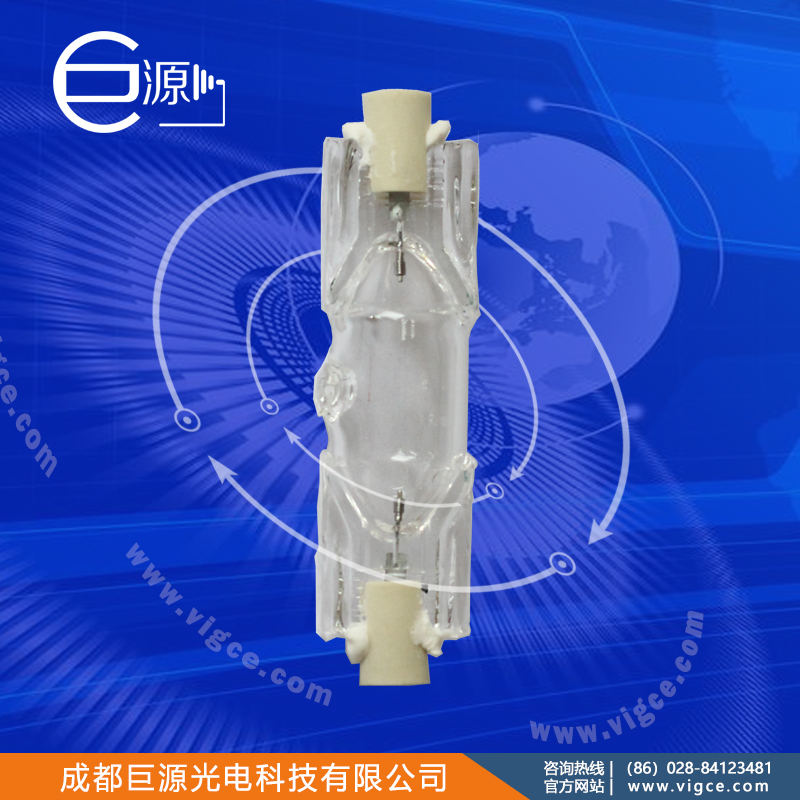

【综合介绍】铁灯,又称为卤素铁灯,是一种高紫外线强度的金属卤化物灯。铁灯发出的高能紫外线区谱线非常丰富,中心谱线为385nm,呈连续分布,且紫外线能量大,紫外线光谱分布广。适合于UV漆的涂装干燥,以及需要特定紫外线的实验室应用。适合实验室、高校、环保公司、化工公司、需要中小流量液体/气体处理的场合、为客户展示场合等。
【使用说明】【产品照片】【视频资料】【同系产品】
【规格参数】
型号 Type |
功率Watts W |
工作电压Voltage V |
工作电流Current|A |
启动时间 Run-Up Time|S |
尺寸 (length×Diameter)|mm |
燃点位置 Burning Position |
JYT2000 |
2000 |
380 |
5.6 |
1 |
300MM |
|
Ultraviolet ray iron lamp for wide spectrum experiment
[product model] JYT
[key] iron lamp, high intensity ultraviolet ray, UV paint curing, short wave ultraviolet ray
UV curing lamp [product category]
Metal halide discharge lamp
[product characteristics] 1. small, convenient, high efficiency;
2., the iron lamp and iron lamp liquid (gas) experimental device module produced by gigantic source can meet all kinds of occasions where UV radiation is needed, and it has the ability to handle complex components of liquid / gas.
The 3. pure quartz tube forms a narrow gap that allows the liquid (air flow) to be evenly and lightly irradiated by short wave ultraviolet rays. The ozone produced by the non - polar lamp can also be added to the reaction device to continue to react.
UV paint drying and curing, laboratory application of specific ultraviolet rays, 3D printers, printing, UV drying, criminal investigation
[comprehensive introduction] iron lamp, also known as halogen iron lamp, is a kind of high ultraviolet intensity metal halide lamp. The high energy ultraviolet spectrum line of the iron lamp is very rich. The central spectral line is 385nm, which is continuously distributed, and the ultraviolet energy is large and the ultraviolet spectrum is widely distributed. It is suitable for the coating drying of UV lacquer and the application of specific ultraviolet light in the laboratory. It is suitable for laboratories, universities, environmental protection companies, chemical companies, medium and small flow liquid / gas processing occasions, for customers to display the occasion and so on.
[description] [product photos] [video data]
[specification parameter]
