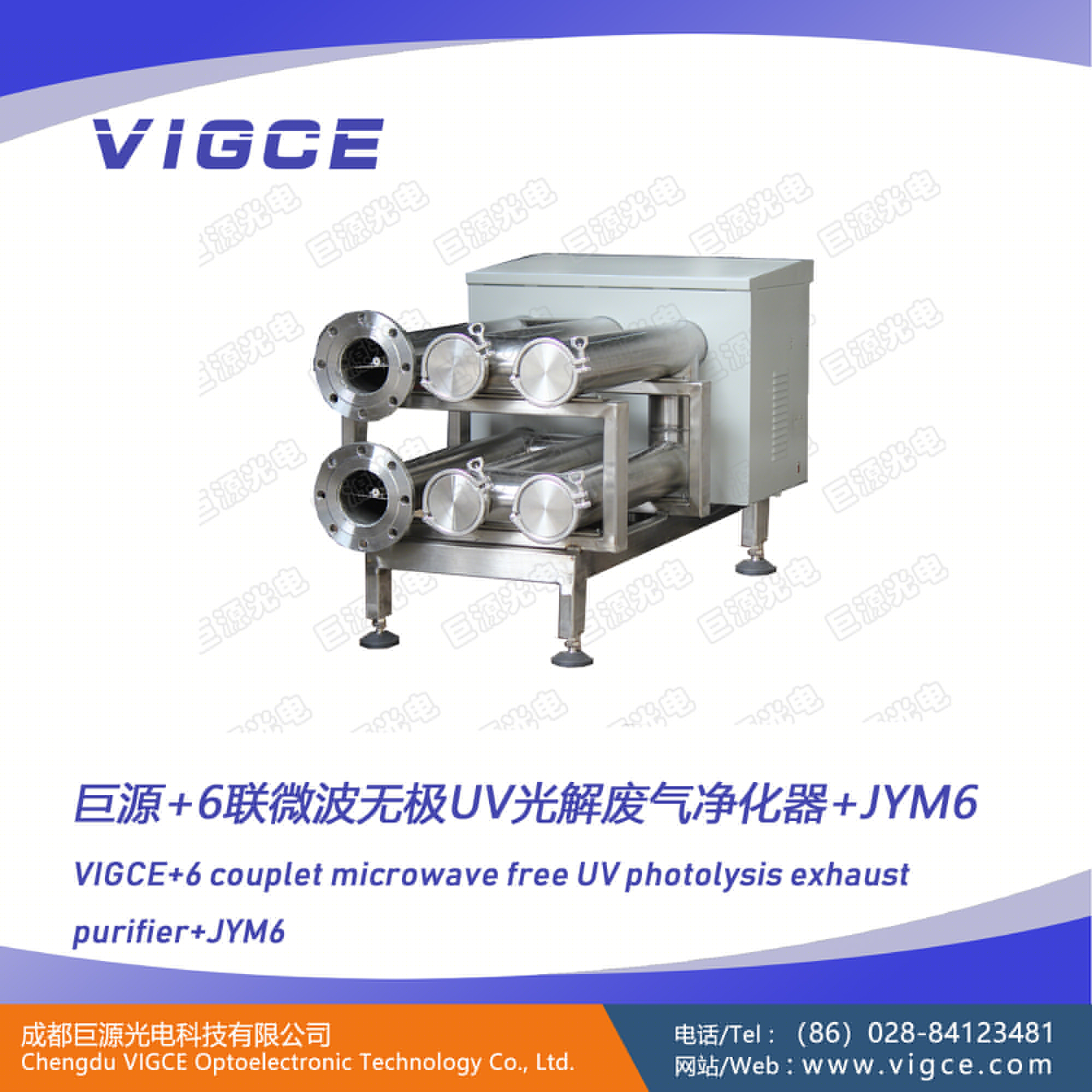

【产品名称】6联微波无极UV光解废气净化器

【产品型号】JYM6

【关 键 字】紫外线废气处理设备,臭氧废气处理设备,微波发生器,微波紫外无极灯系统,大流量废弃处理设备,光氧化,光催化,无极紫外灯,UV光解VOC设备

【产品类别】废气处理

【技术原理】微波紫外无极灯成套系统

【产品特点】

1.光解系统多至6套：包括6组可单独控制电源和6根微波无极紫外灯管；2.独立控制光氧系统：6组系统可同时开启，也可分别控制；

3.开放的前后端接口：接口方便连接PLC系统；4.强大内部升级空间：可在电控箱内部加配紫外、臭氧等在线监测装置；

5.全密封并联管道：紫外辐射集中，臭氧产生量大，气体处理时间短，处理风量大；

6.体积适宜安全性高：耗能小、占地面积小，自身封装良好，无微波、紫外泄露。

【应用范围】废气处理,光解VOCs

【综合介绍】

6联微波无极UV光解废气净化器是基于微波紫外无极灯系统设计的成套气体处理设备，包括独立控制的6组电源和6根灯管。6组电源集成在电控箱内，6根电缆从电控箱接出，电缆连接6个激励器，激励器焊接在食品级不锈钢管道上，管道内分别固定6根灯管。集成性高，处理量大，处理时间段，处理效果显著。该设备已是完整的气体处理单元，只需要加装前置的气体收集装置、除水、除尘装置和后续的排放管道，即可构成完整的大风量废气处理系统。

【使用说明】【产品照片】【视频资料】【同系产品】

【规格参数】处理气量：12000-15000方/h

[product name] 6 couplet microwave free UV photolysis exhaust purifier
[product model] JYM6
[Key words] ultraviolet exhaust treatment equipment, ozone waste gas treatment equipment, microwave generator, microwave ultraviolet electrodeless lamp system, large flow waste treatment equipment, photo oxidation, photocatalysis, electrodeless ultraviolet lamp, UV photolysis VOC equipment.
Waste gas treatment
A complete system of microwave ultraviolet light free lamp
[product characteristics]
1., the photolysis system is more than 6 sets: including 6 groups, which can separately control the power supply and 6 microwave electrodeless ultraviolet lamps. 2., the independent control photooxygenation system: 6 sets of systems can be opened at the same time, or also separately controlled.
3., the open front and rear interface: the interface is convenient to connect to the PLC system; 4., the powerful internal upgrading space is equipped with UV, ozone and other online monitoring devices inside the electric control box.
5. fully sealed parallel pipeline: the concentration of ultraviolet radiation, the large amount of ozone production, the short treatment time of the gas and the large amount of air handling;
The 6. volume is suitable for high safety: small energy consumption, small area, good encapsulation, no microwave and ultraviolet leakage.
[application range] waste gas treatment, photolysis VOCs
[comprehensive introduction]
The 6 microwave endless UV photolysis exhaust gas purifier is a complete set of gas processing equipment based on the microwave ultraviolet electrodeless lamp system, which includes 6 independent power supply and 6 lamp tubes. The 6 power supply is integrated into the electric control box, 6 cables are connected from the electric control box, the cable connects 6 exciter, the actuator is welded on the food grade stainless steel pipeline, and 6 lamps are fixed in the pipeline respectively. High integration, large amount of processing, treatment time, treatment effect is remarkable. The device is already a complete gas processing unit. Only a pre gas collection device, a water removal device, a dust removal device and a subsequent exhaust pipe are needed to form a complete large volume exhaust gas treatment system.
[description] [product photos] [video data]
(specification parameter) treatment of gas: 12000-15000 party /h
