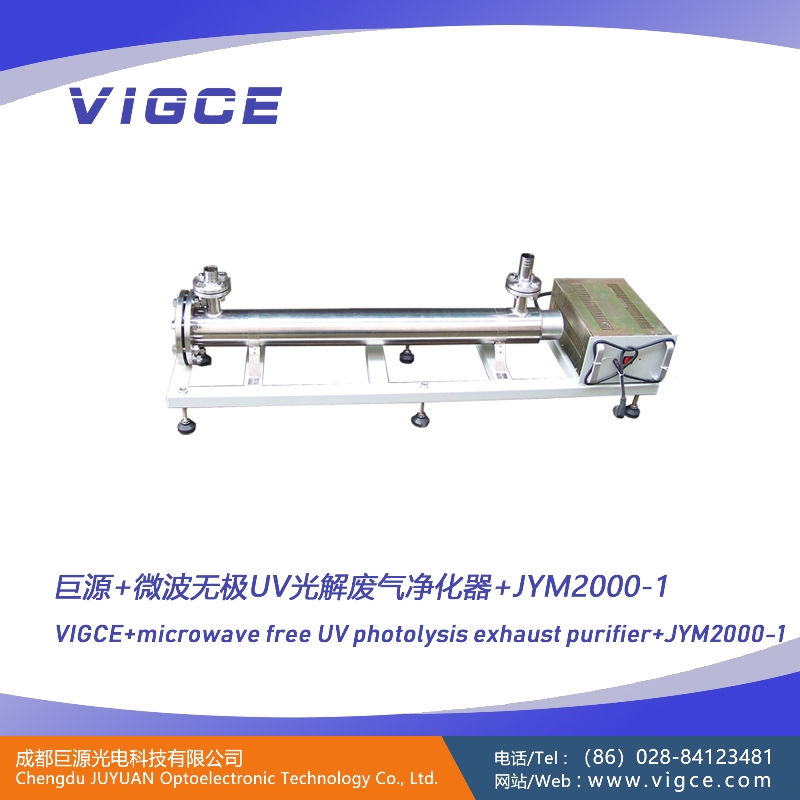

【产品名称】微波无极UV光解废气净化器

【产品型号】JYM2000-1（法兰）

【关 键 字】UV光解VOCs、光氧化、消毒灭菌除臭、空气净化、废气处理

【产品类别】废气处理

【技术原理】微波无极紫外灯系统

【产品特点】

1．超强185nm紫外线，高效除臭、消毒、分解有机污染物。有效分解从烃到羧酸等众多有机物，高效除恶臭、高效消毒灭菌，且矿化程度高；

2．无需额外添加任何化学催化物质，安全净化，无二次污染，适用范围广。

3．微波驱动+紫外臭氧消毒双重作用，消毒灭菌的效果更强劲。

4．设计简洁可靠，安装操作友好，运行维护便利，工程造价投资少。

5．能耗低，净化性能强，全面品质保障，无忧质保。

6. 空间占用小，扩展功能多，适应场合广。

7．搭载微波无极紫外灯管，高能、强效、寿命长。

【应用范围】紫外线除异味,无害除臭,污水处理,空气处理,臭气除臭除异味,地下商场医院写字楼消毒灭菌

【综合介绍】

※超强185nm紫外线，高效除臭、消毒、分解有机污染物。

超强185nm紫外光谱，有效分解从烃到羧酸等众多有机物，高效除恶臭、高效消毒灭菌，且矿化程度高。美国环保署公布的9大类114种污染物均被证实可通过光催化氧化得到治理，即使对原子有机物如卤代烃、燃料、含氮有机物、有机磷杀虫剂也有很好的去除效果，一般经过持续反应可达到完全净化。对恶臭气体的降解比较完全。可较彻底的脱除产生恶臭的物质和各种恶臭味，脱臭效果满足恶臭污染物排放标准（GB14554-93）。

※无需额外添加任何化学催化物质，安全净化，无二次污染，适用范围广。

JYM2000产品采用环境友好型的UV紫外线，是目前最安全的废气净化方法之一，无消毒副产物，无二次污染，可无害化排放。只需要设置相应的排风管道和排风动力，使恶臭气体通过本185nm紫外线杀菌灯进行脱臭分解净化，无需添加任何化学物质参与化学反应。可适应高、低浓度，大气量，不同恶臭气体物质的脱臭净化处理，可每天24小时连续工作，运行稳定可靠。

※微波驱动+紫外臭氧消毒双重作用，消毒灭菌的效果更强劲。

微波可使细胞中极性物质随高频微波场的震动受到干扰和阻碍, 引起微生物细胞的蛋白质、核酸等生物大分子受热凝固或变性失活, 从而导致其突变或死亡。

※设计简洁可靠，安装操作友好，运行维护便利，工程造价投资少。

JYM2000废气净化器设计简洁可靠、操作简单、维护便捷；属于成套处理设备，快速连接现有的管道，无需组装、线路连接和测试，及安及用；可在室内外安装运行，无需房屋建筑、掩体和镇流器制冷空调投资；无任何机械动作，无噪音，无需专人管理和日常维护，只需作定期检查；外置配电箱，可置于单独的空间和腔体分离操作；大大降低安装、调试、维护人力成本，工程造价投资少。

※能耗低，净化性能强，全面品质保障，无忧质保。

JYM2000废气净化器采用无极紫外灯效率高能耗低，灯管质保时间为120000小时（即150个月）超长的使用寿命，无频繁更换灯管的麻烦，降低运行成本；优质不锈钢SU304或316L（可选）作反应器，内外壁进行特殊抛光处理，具有耐腐蚀、不易变形等特点；全寿命周期内的净化性能保证，行业内最好的灯管质保，无忧售后。

※空间占用小，扩展功能多，适应场合广。

由于无极紫外灯管的功率密度远高于传统紫外灯管，在处理相同当量废气时，占地面积更小、处理时间更短、安装调试工程量更小，适应多种场合处理需要；配有用户自选的紫外线强度监测系统，便于监测石英管的结构情况和紫外灯使用强度变化；配有工作指示灯、工作累时计、报警系统（用户自选件）；系统可以串、并联安装，用以处理更高的流量或提供设备冗余。

※搭载微波无极紫外灯管，高能、强效、寿命长。

1．无极紫外灯管无电极设计，不存在电极老化问题, 灯管的寿命可长达十几年；

2．微波驱动下的无极灯管具有功率密度高、单位面积内紫外输出功率大等特点，目前公认的发光效率最高的灯管类型；

3．185nm紫外线激发空气产生的臭氧为强氧化剂，对臭气有强烈的分解作用。微波无极紫外灯的185nm紫外线输出量比传统灯管提高5倍；

4．紫外线、臭氧再配合微波的杀菌作用，可使净化效率提高数倍；

5．瞬时启动和再启动, 光输出稳定；

6．紫外灯管更换维修次数少, 适用于维修困难的场合；

7．选用高透光率、高纯度石英管，可防水、防火、防爆、防腐蚀，无电极消耗，使用寿命长，紫外线透过率高于90%；

【使用说明】

【产品照片】

【视频资料】

【同系产品】JYM2000  JYM2000-1    JYM2000-2

【规格参数】见产品参数表

[product name] microwave free UV photolysis exhaust purifier
[product model] JYM2000
[Keywords] UV photolysis VOCs, photooxidation, disinfection and deodorization, air purification, and waste gas treatment
Waste gas treatment
Microwave non polar ultraviolet lamp system
[product characteristics]
1. ultra strong 185nm ultraviolet ray, high efficiency deodorization, disinfection, decomposition of organic pollutants. It can effectively decompose many organic compounds from hydrocarbons to carboxylic acids, effectively disinfect and sterilize with high efficiency and high degree of mineralization.
2. no additional chemical catalysis, safe purification, no two pollution, a wide range of application.
3. microwave drive + ultraviolet ozone disinfection double effect, disinfection and sterilization effect is more strong.
4. the design is simple and reliable, the installation operation is friendly, the operation and maintenance is convenient, and the cost of the project cost is less.
5. low energy consumption, strong purification performance, comprehensive quality guarantee, no worry about quality assurance.
6. space occupancy is small, the expansion function is many, the adaptability is wide.
7. with microwave non polar ultraviolet lamp, high energy, strong effect, long life.
[application range] ultraviolet except odor, harmless deodorization, sewage treatment, air treatment, odor deodorization and odor removal, disinfection and sterilization of office buildings in the hospital of underground shopping mall
[comprehensive introduction]
The super 185nm ultraviolet, deodorizing, disinfecting, decomposition of organic pollutants.
Ultra strong 185nm ultraviolet spectrum, effective decomposition from hydrocarbon to carboxylic acid and other organic substances, high efficiency in addition to the odor, high efficiency disinfection and sterilization, and high mineralization. The United States Environmental Protection Agency announced the 9 categories of 114 kinds of pollutants were confirmed by photocatalytic oxidation treatment, even for atomic organic compounds such as halogenated hydrocarbons, fuel, organic nitrogen, organic phosphorus pesticides also have very good removal effect, after the general reaction can be achieved complete purification. The degradation of odour gas is quite complete. The deodorizing substance and odor can be completely removed, and the deodorization effect meets the odor emission standard (GB14554-93).
But without any additional chemical catalytic material, safe purification, no two pollution, wide application range.
JYM2000 product adopts environment-friendly UV ultraviolet. It is currently one of the safest exhaust gas purification methods, no disinfection by-products, no two time pollution, and it can be discharged harmlessly. It is necessary to set up the corresponding exhaust pipe and exhaust power to make the odorous gas deodorize and purify through the 185nm ultraviolet germicidal lamp, and do not need any chemicals to participate in the chemical reaction. It can adapt to the deodorization treatment of high, low concentration, atmosphere and different odor gases. It can work continuously 24 hours a day, and the operation is stable and reliable.
The microwave driven + UV ozone disinfection effects, the sterilization effect is more strong.
Microwave can disturb and obstruct the polar substances in the cell with the vibration of the high-frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or degeneration and inactivation, resulting in mutation or death.
The design is simple and reliable, friendly operation and maintenance convenient installation and operation, less investment, project cost.
JYM2000 waste gas purifier design is simple and reliable, simple operation and convenient maintenance; to complete processing equipment, quick connect existing pipelines, no assembly, connection and test, and the safety and operation; can be installed in the indoor and outdoor, no buildings, bunkers and ballast of refrigeration and air conditioning investment; without any mechanical action, no noise, no special management and daily maintenance, only need to regularly check; external distribution box, can be placed in separate space and cavity separation operation; greatly reduce the installation, commissioning and maintenance of manpower cost, engineering cost less investment.
The purification of low energy consumption, strong performance, guarantee quality comprehensive, free warranty.
JYM2000 exhaust gas purifier using electrodeless UV lamp with high efficiency and low consumption lamp warranty for 120000 hours (or 150 months) long service life, without frequent replacement of lamp trouble, reduce operating costs; high quality stainless steel SU304 or 316L (optional) reactor, inside and outside wall of the special polishing processing, has the characteristics of resistance corrosion, deformation; whole life cycle purification performance, the best quality lamp industry, worry free customer service.
The small occupied space, multi-function expansion, wide applications.
Because the power density of electrodeless UV lamp is much higher than the traditional UV lamp, in dealing with the same equivalent emissions, covers an area of smaller, shorter processing time, installation quantity is smaller, to adapt to a variety of occasions need treatment; equipped with UV intensity monitoring system user selected, for monitoring the structure of quartz tube and ultraviolet lamp the intensity change; work with lights, work clock, alarm system (user option); series and parallel system can be installed to handle more traffic or provide equipment redundancy.

If equipped with microwave electrodeless UV lamp, high energy, strong and long service life.
1. no electrode design of ultra violet light tube, no electrode aging problem, the life of the lamp can be more than ten years.
The 2. microwave driven electrodeless lamp has the characteristics of high power density and large output power in the unit area. The most widely recognized lamp type is currently recognized.
The ozone produced by the ultraviolet ray of 3.185nm is a strong oxidizing agent, which has a strong decomposition effect on the odor. The 185nm UV output of the microwave non polar ultraviolet lamp is 5 times higher than that of the traditional lamp.
4. the bactericidal effect of ultraviolet, ozone and microwave can increase the purification efficiency several times.
5. instantaneous start and restart, the light output is stable.
6. the replacement of the ultraviolet lamp tube has few maintenance times, which is suitable for the situation of difficult maintenance.
7., the high transmittance and high purity quartz tube can be used for waterproofing, fire protection, explosion protection, corrosion prevention, no electrode consumption, long service life and UV transmittance above 90%.
[instructions]
[product photo]
[video data]
[homologous products] JYM2000 JYM2000-1 JYM2000-2
See the product parameter table
