XL氙灯

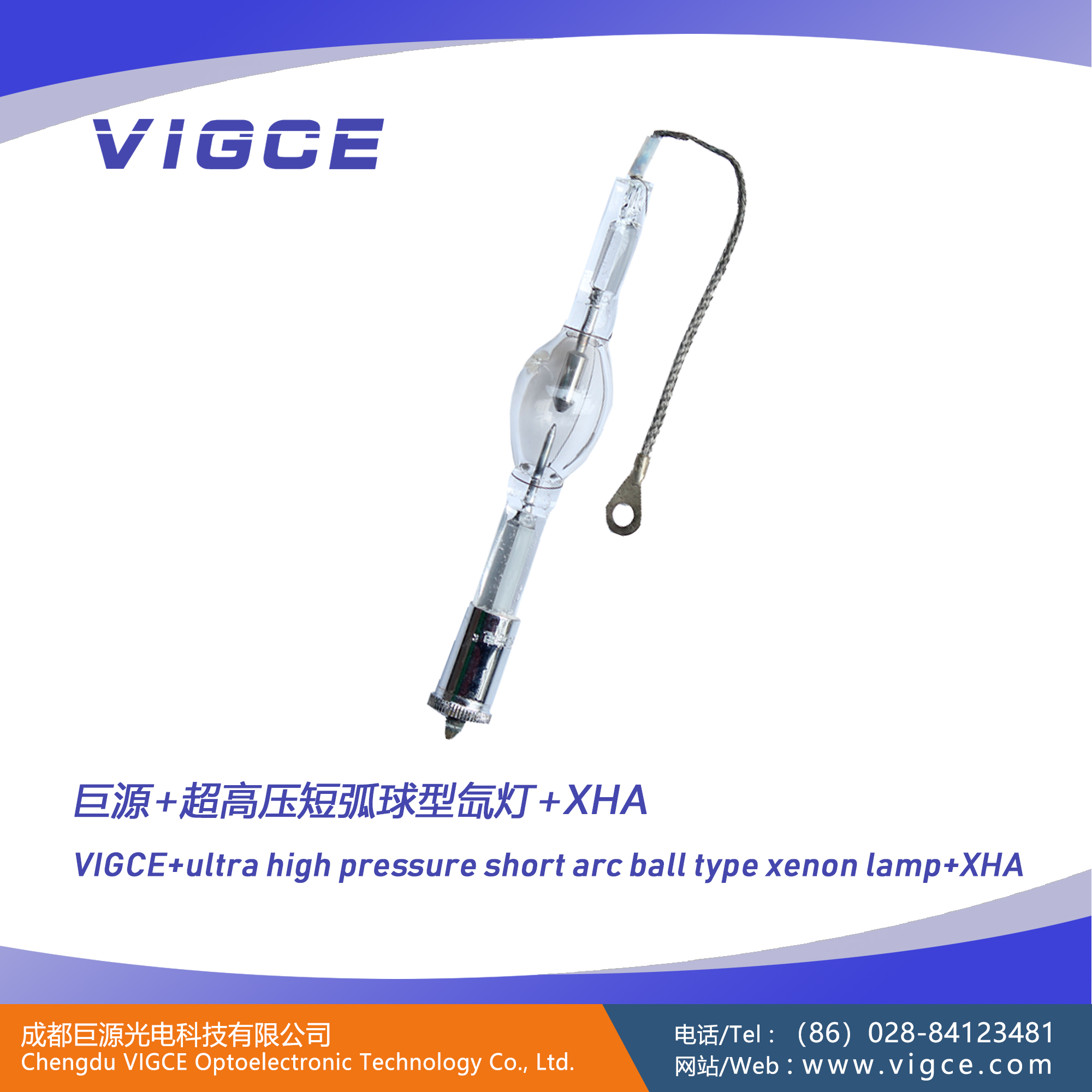

巨源+超高压短弧球型氙灯+XHA

点光源
亮度高
标准白色光源
模拟日光
产品描述：球型超高压短弧氙灯是具有高亮度的点光源，广谱宽且连续，从紫外到近红外线，亮度高，发光体体积小，显色性好，适用于电影放映拍摄，电视片的照明，探照灯、舞台照明、医疗光源等，并和作为光学仪器、红外线探测技术以及模拟日光等方面的光源和标准白色光源。
在线订购

巨源+超高压短弧球型<a href=http://www.vigce.com/index.php/list/index/g/c/id/54.html target='_blank'>氙灯</a>+XHA

【产品名称】超高压短弧球型氙灯

【产品型号】XHA

【关键字】球型氙灯,舞台照明灯,点光源,电影放映等,模拟日光,标准白光源

【产品类别】激光光源

【技术原理】球型氙气灯

【产品特点】

1.氙灯是利用氙气放电发光的气体放电灯,放电强度大；

2.具有亮度高,发光体体积小的优点；

3.光谱能量分布接近于太阳光,是最接近日光色的人造光源；

4.近似日光色5500K-6000K，高显色指数＞95;

5.灯的寿命长，颜色保持不变，可利用功率在50-10000W。

6.显色性好，作为标准白色光源的最佳选择，特别是适用于电影放映；

【应用范围】电影放映拍摄，电视片的照明，探照灯、舞台照明、医疗光源等，并和作为光学仪器、红外线探测技术以及模拟日光等方面的光源和标准白色光源

【综合介绍】

球型超高压短弧氙灯是具有很高亮度的点光源,能辐射出从紫外到近红外线的强烈连续光谱的光,具有亮度高,发光体体积小，显色性好等优点,特别适用于电影放映，以及拍摄电影、电视片的照明，探照灯、舞台照明、医疗光源等,并和作为光学仪器、红外线探测技术以及模拟日光等方面的光源和标准白色光源。

氙灯是利用氙气放电发光的气体放电灯,灯的光谱能量分布接近于太阳光,是最接近日光色的人造光源。近似日光色5500K-6000K，高显色指数＞95，灯的寿命中，颜色保持不变，可利用功率在50-10000W。

管形长弧氙灯和作为码头、广场、体育场的大面积照明光源，还可作为印刷照相制版，布匹烟丝检验，塑料、橡胶药物的老化试验，人工气候室植物栽培，以及光化学反映光源等。

巨源光电作为氙灯的精深研发生产企业，拥有多项自主开发成果。公司总工为《《超高压球型氙灯国家标准》（GB 15041）的起草人之一，在氙灯生产制造领域处于国内权威位置。

【使用说明】

【产品照片】

【视频资料】

【同系产品】

【规格参数】

超高压短弧球型氙灯

[product name] ultra high pressure short arc ball type xenon lamp
[product model] XHA
[key] the ball type xenon lamp, the stage light, the point light, the film projection, and so on, the simulated sunlight, the standard Bai Guangyuan
Laser light source
[technical principle] a spheroidal xenon lamp
[product characteristics]
The 1. xenon lamp is a gas discharge lamp which uses xenon discharge to glow, and the discharge intensity is great.
The 2. has the advantages of high brightness and small volume of the luminescent body.
3. the spectral energy distribution is close to the sun light, which is the closest sunlight to the artificial light.
4. similar to solar color 5500K-6000K, high color index more than 95;
The 5. lamp has a long life, the color is kept constant, and the power can be used in 50-10000W.
6. good color display, as the best choice of standard white light source, especially for film screening.
[application] movie projection, shooting, TV lighting, searchlight, stage lighting, medical light source, and light sources and standard white light sources as optical instruments, infrared detection technology and simulated sunlight.
[comprehensive introduction]
The ball type ultra high pressure xenon short arc lamp is of high brightness point light sources can radiate from the ultraviolet to the near infrared spectrum of continuous strong light, light with high brightness, small volume, good color and other significant advantages, especially suitable for film screenings, film, television and lighting, searchlight the stage lighting, light source, medical, light source and standard white light source and as optical instrument, infrared detection technology and solar simulator etc..
Xenon lamp is a gas discharge lamp that uses xenon discharge to glow. The spectral energy distribution of the lamp is close to the sun light. It is the closest artificial light source to the sun color. Similar to solar color 5500K-6000K, high color index more than 95, the life of the lamp, the color remains the same, can be used in the power of 50-10000W.
The ball type ultra high pressure xenon short arc lamp is of high brightness point light sources can radiate from the ultraviolet to the near infrared spectrum of continuous strong light, light with high brightness, small volume, good color and other significant advantages, especially suitable for film screenings, film, television and lighting, searchlight the stage lighting, light source, medical, light source and standard white light source and as optical instrument, infrared detection technology and solar simulator etc..
Tubular long arc xenon lamp and large area lighting source used as wharf, square and stadium can also be used as printing and phototypesetting, cloth and tobacco inspection, plastic and rubber aging test, artificial climate chamber plant cultivation, and photochemistry reflecting light source.
Giant source optoelectronic, as the deep research and development and production enterprise of xenon lamp, has a number of independent development results. Company chief engineer for "" ultra high pressure ball xenon lamp national standard "(GB 15041) is one of the drafters, in the domestic authoritative position in the field of manufacturing of xenon lamp.
[instructions]
[product photo]
[video data]
[homologous products]
[specification parameter]

国际型号 Lamp Type	额定功率 Watts W	电源电压 Supply Voltage V	工作电压 Operating Voltage V	工作电流 Current A	光通量Lumens lm/W	工作位置 (\| -)	全长 Overall Length mm	直径 Diameter mm	寿命 Average Life h
XHA35	35	50	11±2	3	0.25	垂直100	85	10	250
XHA75	75	50	14	5.4	0.95	垂直100	90	14	400
XHA150A	150	65	17.5	8.5	2.9	垂直15水平15	150	20	1200
XHA150B	150	65	20	7.5	2.9	垂直15水平15	150	20	1200
XHA350	350	60	22±2	16	12	垂直15水平15	133	23	600
XHA400	400	60	19±2	21	12	垂直30水平30	150(122)	27	1000
XHA450	450	70	18	25	13	垂直 30	260	31	2000
XHA500	500	80	18	28	14.5	垂直30水平30	190	35	2000
XHA750A	750	65	23±2	33	26	垂直20水平20	200	36	1000
XHA750B	750	65	21±2	36	24	垂直20水平20	136	36	500
XHA900	900	70	20	45	30	垂直30	325	40	2000
XHA1000A	1000	80	22	45	35	垂直30水平30	330	48	1500
XHA1000B	1000	75	20	50	32	垂直20水平20	235	40	1500
XHA1000C	1000	75	20	50	32	垂直20水平20	236	40	1500
XHA1500	1500	75	25±2	60	54	垂直30水平20	320	48	1500
XHA1600A	1600	75	25	65	60	垂直30	370	53	2000
XHA1600B	1600	75	22	65	60	垂直20水平30	235	47	1500
XHA1600C	1600	75	22	65	60	垂直20水平30	236	47	1500
XHA2000A	2000	110	29	70	80	垂直30水平30	375	62	1500
XHA2000B	2000	110	29	70	80	垂直30水平30	375	62	1500
XHA2500A	2500	85	30	83	100	垂直30	428	60	1500
XHA2500B	2500	90	28	90	100	垂直30水平20	342	60	1500
XHA3000A	3000	110	30	100	130	垂直30水平20	405	66	1500
XHA3000B	3000	110	30	100	130	垂直30水平30	428	66	1500
XHA4000	4000	110	30	135	155	垂直20水平20	410	70	800
XHA5000	5000	110	34±2	145	200	垂直15水平20	425(440)	71(66)	800
