【产品名称】通用投影灯芯
【产品型号】JYTD
【关 键 字】通用投影灯芯,液晶投影仪灯芯灯泡,电影放映机灯芯灯泡,高性价比投影灯芯
【产品类别】投影灯泡
【技术原理】金属卤化物放电灯芯
【产品特点】
1.体积小、发光效率高、使用寿命长、启动性能好附加电源较为简单;2.灯芯采用高纯度石英制作,耐高压,可承受200个标准大气压,相当于3个煤气罐或者2个氧气管压强;3.投影灯芯由球壳、特殊气体和电极组成,制作工艺高、耐高温、耐高压;4.光学性能好,使用寿命长,功耗合适;5.采用高反光性能灯杯作为反射器,发射性和集光性好,且具有高机械强度防爆性能好;
【应用范围】电影放映机、投影仪等仪器光源
【综合介绍】
通用型多媒体灯芯具有体积小、发光效率高、使用寿命长、启动性能好附加电源较为简单等优点,能适应于所有电影放映机、投影仪等仪器。在开发过程中,特别重视了在不同机器、相同功率状态下的通用性,因此开发成本大大降低。同时也降低了大部分的使用成本,是您首选的性价比超高产品。
【使用说明】
使用投影机,要尽可能保证投影机的外部使用环境利于散热。使用中保障投影机身上无覆盖物。使用后保持继续通电让灯泡冷却一段时间。
投影机长时间开机工作,使用较长时间后,请厂商人员定期进行灰尘清理,保障散热和稳定性;
不要购买低价位、无保障产品。平时不要随意拆卸投影机。安装时不要在灯罩、灯杯,特别是灯芯上留下指纹,指纹含有油脂,会导致热膨胀不均匀而导致爆炸。

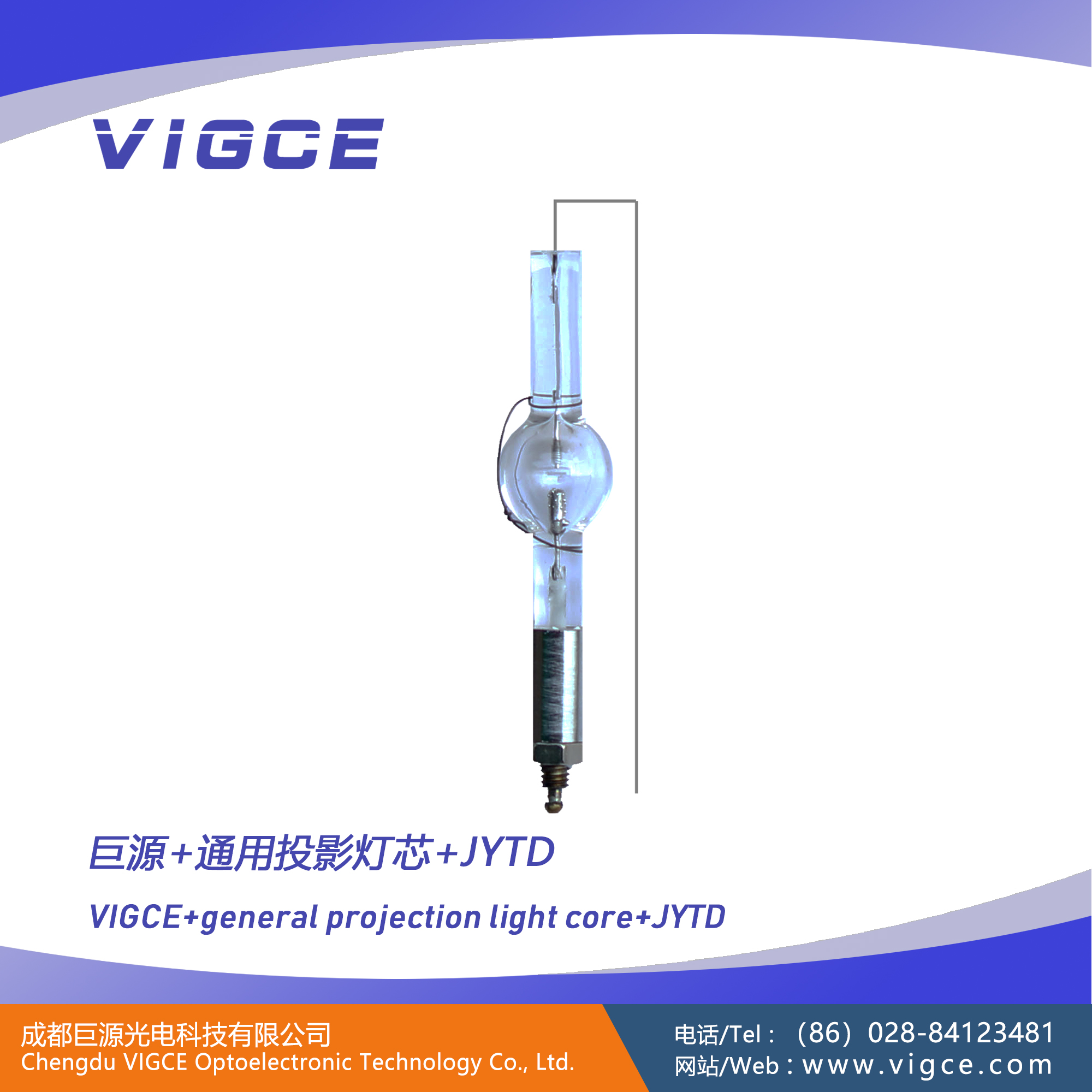

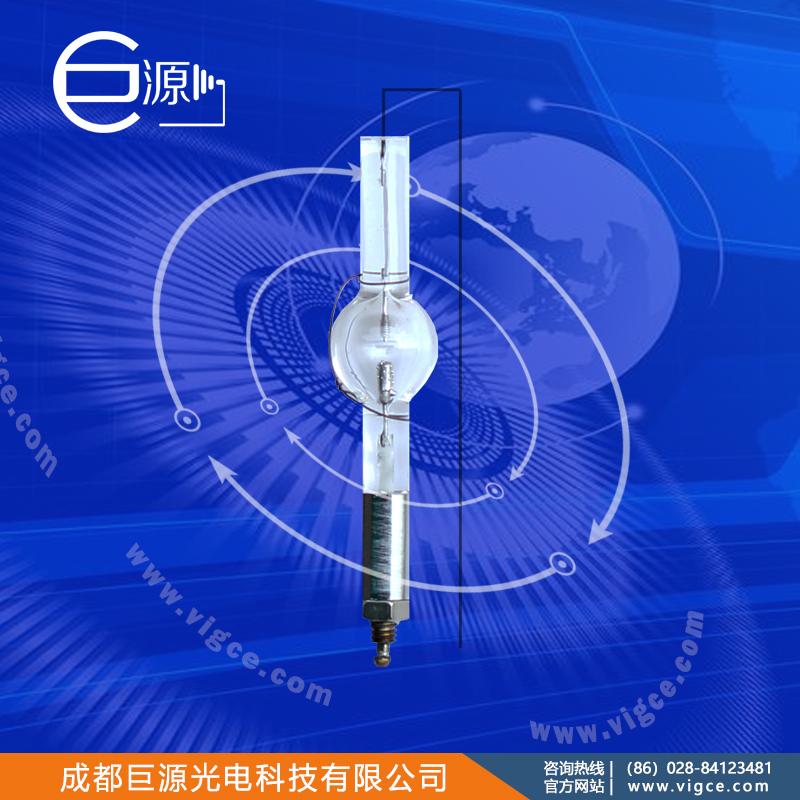

【产品照片】
【视频资料】
【规格参数】
灯泡型号 Lamp Type |
功率 Watts W |
工作电压 Operating Voltage V |
工作电流 Current A |
光通量 Lumens lm |
色温 Color Temp K |
光中心高度 LightCenter Length |
电弧长度 EffectiveArc Length L mm |
泡壳直径 Bulb Diam D mm |
寿命 Average Life h |
JYTd120/D.C |
120 |
75 |
1.5 |
7000 |
8000 |
32 |
1 |
11 |
2000 |
JYTd120/A.C |
120 |
75 |
1.5 |
7000 |
8000 |
31 |
1 |
11 |
2000 |
JYTd150/D.C |
150 |
75 |
2 |
8500 |
7500 |
35 |
1.2 |
12 |
2000 |
JYTd150/A.C |
150 |
75 |
2 |
8500 |
7500 |
33 |
1.2 |
12 |
2000 |
JYTd200/D.C |
200 |
75 |
2.6 |
11500 |
7500 |
35 |
1.5 |
13 |
2000 |
JYTd200/A.C |
200 |
75 |
2.6 |
11500 |
7500 |
33 |
1.5 |
13 |
2000 |
JYTd275/D.C |
275 |
75 |
3.6 |
16000 |
7200 |
35 |
1.8 |
13 |
2000 |
JYTd275/A.C |
275 |
75 |
3.6 |
16000 |
7200 |
33 |
1.8 |
13 |
2000 |
JYTd350/D.C |
350 |
75 |
4.6 |
18750 |
7200 |
37 |
2 |
15 |
2000 |
JYTd400/D.C |
400 |
75 |
5 |
21500 |
7200 |
37 |
2.2 |
15 |
2000 |
[product name] general projection light core
[product model] JYTD
Universal projection light core, liquid crystal projector lamp light bulb, film projector light bulb, high cost performance projection
Projection light bulb
Metal halide discharge lamp core
[product characteristics]
1. small volume, high luminous efficiency, long service life, good starting performance additional power supply is relatively simple; 2. wick with high purity quartz production, high pressure resistance, can withstand 200 standard atmospheric pressure, the equivalent of 3 gas tank or 2 oxygen pressure; 3. projection lamp wick consists of a spherical shell and special gas electrode composition, manufacturing process, high temperature and high pressure; 4. good optical performance, long service life, power consumption is appropriate; 5. high reflective properties as lamp reflector, and light emission is good, and has high mechanical strength and good explosion-proof performance;
Film projector, projector, and other instrument light sources
[comprehensive introduction]
The versatile multi-media wick has the advantages of small volume, high luminous efficiency, long service life, good starting performance and simple additional power supply. It can be applied to all movie projectors, projectors and other instruments. In the process of development, it pays special attention to the universality of the different machines and the same power state, so the development cost is greatly reduced. At the same time, it also reduces the cost of most of the use. It is your preferred price to price super high product.
[instructions]
Use the projector to ensure that the external environment of the projector is beneficial to heat dissipation. In use, there is no cover on the projector. Keep the electricity to cool the bulb for a period of time after use.
The projector opens the machine for a long time. After a long time, the manufacturer is invited to clean up the dust regularly to ensure heat dissipation and stability.
Do not buy low price, unguaranteed products. Don't take down the projector at random. The installation not in the lampshade, lamp cup, especially fingerprint left on the wick, fingerprint containing grease, will cause thermal expansion caused by uneven explosion.
[product photo]
[video data]
[specification parameter]
