PS投影灯机系列

  • 巨源+精点投影灯芯+JYD
巨源+精点投影灯芯+JYD

巨源+精点投影灯芯+JYD

  • 定制研发匹配度高
  • 发光效率高
  • 启动性能好
  • 使用寿命长
  • 产品描述:精点型多媒体投影灯芯,根据不同品牌灯泡特点分别对应研发,体积小,发光效率高,使用寿命长,启动性能好,附加电源较为简单,适用于各种投影仪投影机。
  • 在线订购

巨源+精点<a href=http://www.vigce.com/index.php/list/index/g/c/id/52.html target='_blank'>投影灯芯</a>+JYD


【产品名称】精点投影灯芯

【产品型号】JYD

【关 字】精点型投影灯芯, 投影灯,投影仪灯芯,投影灯泡,投影机灯芯,国产投影仪灯芯

【产品类别】投影灯泡

【技术原理】金属卤化物放电灯芯

【产品特点】

1.体积小、发光效率高、使用寿命长、启动性能好、附加电源较为简单;

2.根据不同品牌灯泡特点分别对应研发,亮度高、效果好、维护简单、寿命长;

3.灯芯采用高纯度石英制作,耐高压,可承受200个标准大气压,相当于3个煤气罐或者2个氧气管压强;

4.投影灯芯由球壳、特殊气体和电极组成,制作工艺高、耐高温、耐高压;

5.光学性能好,使用寿命长,功耗合适;

6.采用高反光性能灯杯作为反射器,发射性和集光性好,且具有高机械强度防爆性能好;

【应用范围】适用于各种投影仪投影机

【综合介绍】

精点型多媒体投影灯芯具有体积小、发光效率高、使用寿命长、启动性能好附加电源较为简单等优点,且根据不同品牌灯泡特点分别对应研发。运用于所对应机型,具有亮度高、效果好、维护简单、寿命长等特点。精点型多媒体投影灯芯,根据不同品牌灯泡特点分别对应研发,体积小,发光效率高,使用寿命长,启动性能好,附加电源较为简单,适用于各种投影仪投影机。

【使用说明】

使用投影机,要尽可能保证投影机的外部使用环境利于散热。使用中保障投影机身上无覆盖物。使用后保持继续通电让灯泡冷却一段时间。

投影机长时间开机工作,使用较长时间后,请厂商人员定期进行灰尘清理,保障散热和稳定性;

不要购买低价位、无保障产品。平时不要随意拆卸投影机。安装时不要在灯罩、灯杯,特别是灯芯上留下指纹,指纹含有油脂,会导致热膨胀不均匀而导致爆炸。

【产品照片】【视频资料】

【同系产品】通用投影灯芯、金卤型投影灯芯、视频投影灯芯

【规格参数】

灯泡型号

Lamp Type

功率

Watts

W

工作电压

Operating Voltage

V

工作电流

Current

A

光通量

Lumens

lm

色温

Color Temp

K

光中心高度

Light  Center

Length

电弧长度

Effective Arc Length

L mm

泡壳直径

Bulb  Diam

D mm

寿命

Average Life

h

JYd120/D.C

120

75

1.5

7500

8000

32

1

9

2000

JYd120/A.C

120

75

1.5

7500

8000

31

1

9

2000

JYd150/D.C

150

75

2

9000

7500

35

1.2

11

2000

JYd150/A.C

150

75

2

9000

7500

33

1.2

11

2000

JYd200/D.C

200

75

2.6

12000

7500

35

1.5

12

2000

JYd200/A.C

200

75

2.6

12000

7500

33

1.5

12

2000

JYd275/D.C

275

75

3.6

16500

7200

35

1.8

13

2000

JYd275/A.C

275

75

3.6

16500

7200

33

1.8

13

2000

JYd350/D.C

350

75

4.6

19250

7200

37

2

14

2000

JYd400/D.C

400

75

5

22000

7200

37

2.2

15

2000

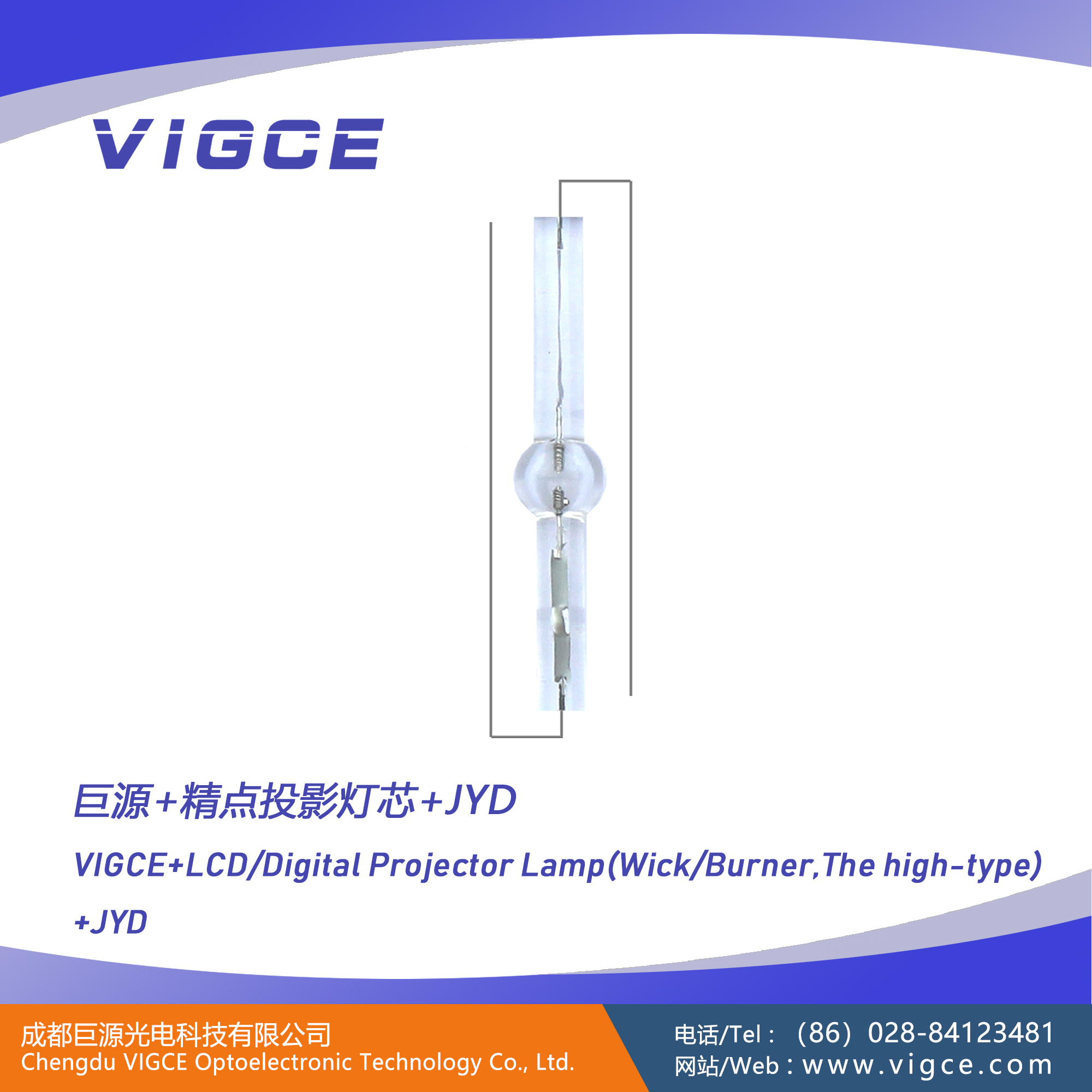

40.《巨源+精点投影灯芯+JYD+说明书》主图

[product name].LCD/Digital Projector Lamp
[product model] JYD
[Keywords] fine point projection lantern, projection lamp, projector lamp, projector bulb, projector core, domestic projector
Projection light bulb
Metal halide discharge lamp core
[product characteristics]
It has small 1. volume, high luminous efficiency, long service life, good starting performance and simple additional power supply.
2. according to the characteristics of different brands of light bulbs, corresponding research and development, high brightness, good effect, simple maintenance, long life;
3. the wick is made of high purity quartz with high pressure resistance and can withstand 200 standard atmospheres, equivalent to 3 gas tanks or 2 oxygen tubes.
The 4. projection lamp is composed of spherical shell, special gas and electrode, which is made of high technology, high temperature resistance and high pressure resistance.
5. good optical performance, long service life and suitable power consumption.
6. with high reflective properties as the lamp reflector, and light emission is good, and has high mechanical strength and good explosion-proof performance;
Applicable to various projector projectors
[comprehensive introduction]
The precision spot type multimedia projection wick has the advantages of small volume, high luminous efficiency, long service life, good starting performance and simple additional power supply, and is corresponding to the development according to the characteristics of different brand bulbs. It has the characteristics of high brightness, good effect, simple maintenance, long life and so on. The fine spot type multimedia projection wick is developed according to the characteristics of different brand bulbs. It has the characteristics of small volume, high luminous efficiency, long service life, good starting performance and simple additional power supply, and is suitable for various projector projectors.
[instructions]
Use the projector to ensure that the external environment of the projector is beneficial to heat dissipation. In use, there is no cover on the projector. Keep the electricity to cool the bulb for a period of time after use.
The projector opens the machine for a long time. After a long time, the manufacturer is invited to clean up the dust regularly to ensure heat dissipation and stability.
Do not buy low price, unguaranteed products. Don't take down the projector at random. The installation not in the lampshade, lamp cup, especially fingerprint left on the wick, fingerprint containing grease, will cause thermal expansion caused by uneven explosion.
[product photos] [video data]
[homologous products] general projection wick, gold halogen type projection lamp, video projection
[specification parameter]
