Microwave Electrodeless UV Equipment

  • Vacuumable microwave electrodeless ultraviolet lamp equipment
  • Vacuumable microwave electrodeless ultraviolet lamp equipment
  • Vacuumable microwave electrodeless ultraviolet lamp equipment
Vacuumable microwave electrodeless ultraviolet lamp equipmentVacuumable microwave electrodeless ultraviolet lamp equipmentVacuumable microwave electrodeless ultraviolet lamp equipment

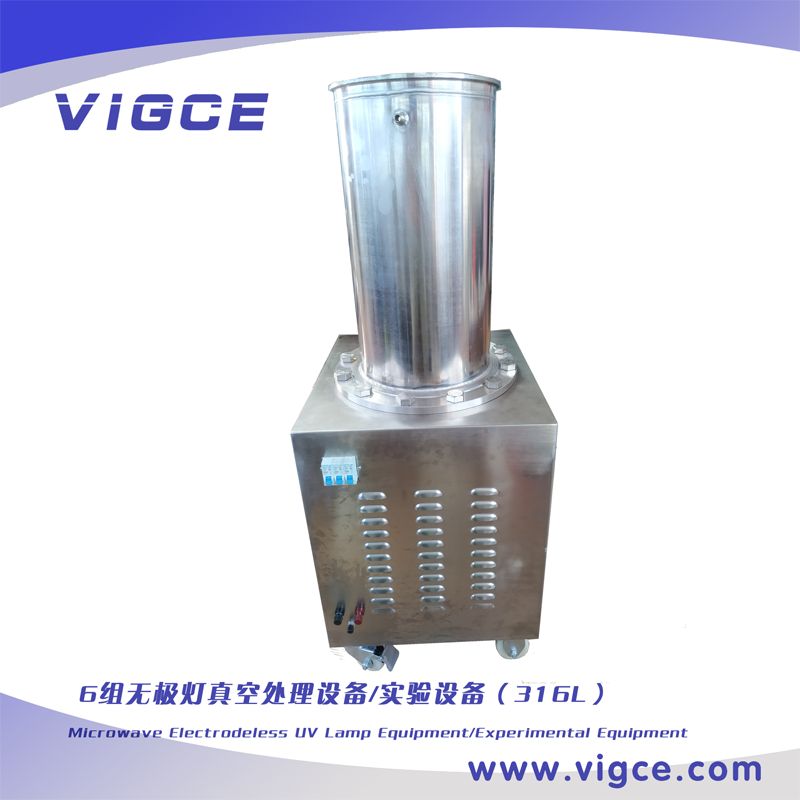

Vacuumable microwave electrodeless ultraviolet lamp equipment

  • electrodeless lamp
  • microwave
  • air
  • Product description: Vacuumable microwave electrodeless ultraviolet lamp equipment
  • INQUIRY
Introduction:

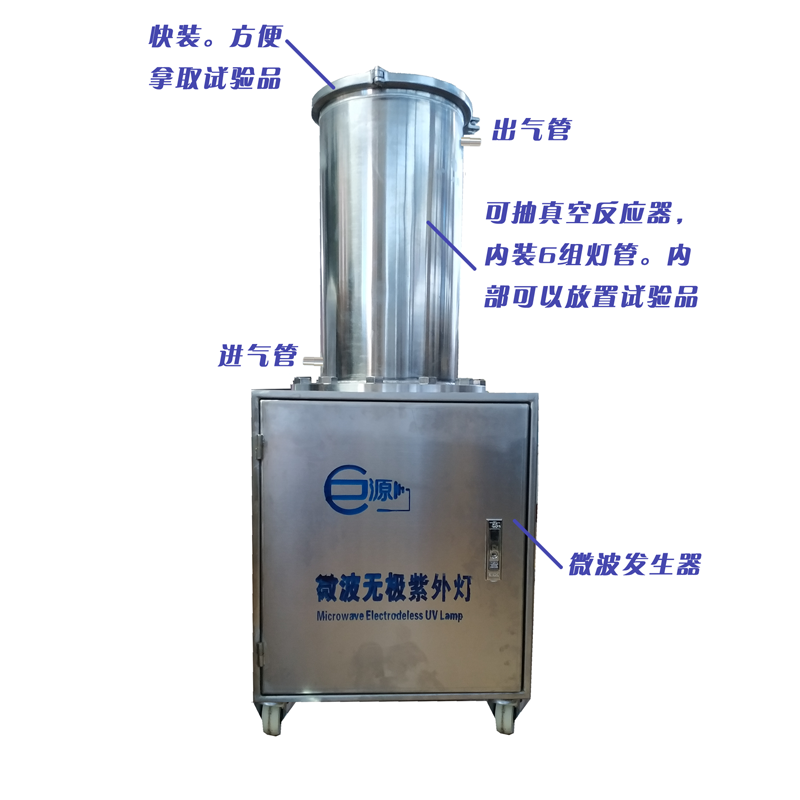

The equipment is used for gas treatment and can be vacuumed. Experimental items with an outer diameter of 40*height of 400 can be placed inside.

There are 6 lamp tubes, which are arranged in a ring around the experimental product, which can evenly irradiate the experimental product.

A total of 3 groups of switches are set up, and each group can control two light tubes, which is convenient for adjusting the light intensity and angle.

Externally set the binding post and the grounding post.

4 pulleys at the bottom for easy movement.

The fully enclosed structure avoids the emission of microwaves, ultraviolet rays, and ozone, and protects the safety of personnel and the site.

Vacuumable. The vacuum ultraviolet rays generated by the electrodeless lamp can be better used, and the ultraviolet rays below 200nm (185.0nm, 172nm, etc.) can be used.



External dimensions:

Reactor height 500mm*outer diameter 273mm

Microwave generator height 530mm*width 480mm*450mm



Material:

316L stainless steel (304 stainless steel/titanium optional)



Power connection: AC 220V/AC 380V optional, good grounding
