Projector Series

  • VIGCE+LCD/Digital Projector Lamp(Wick/Burner,The high-type) +JYD
VIGCE+LCD/Digital Projector Lamp(Wick/Burner,The high-type) +JYD

VIGCE+LCD/Digital Projector Lamp(Wick/Burner,The high-type) +JYD

  • High matching degree of customized R & D
  • High luminous efficiency
  • Good starting performance
  • Long service life
  • Product description: LCD/Digital Projector Lamp(Wick/Burner,the high-type),The fine spot type multimedia projection wick is developed according to the characteristics of different brand bulbs. It has the characteristics o
  • INQUIRY

巨源+精点投影灯芯+JYD

[product name].LCD/Digital Projector Lamp
[product model] JYD
[Keywords] fine point projection lantern, projection lamp, projector lamp, projector bulb, projector core, domestic projector

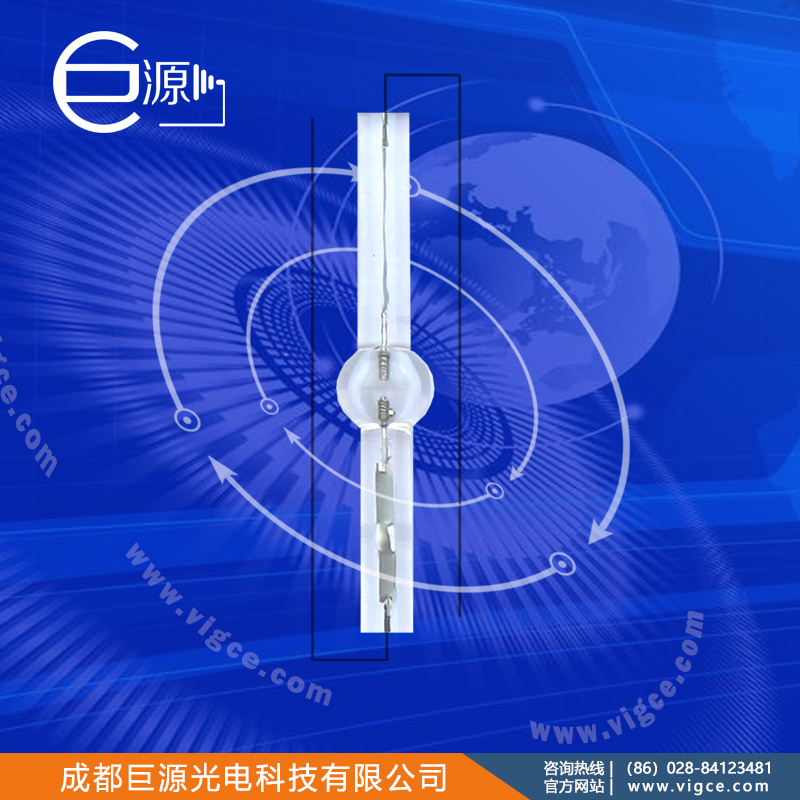

Projection light bulb
Metal halide discharge lamp core
[product characteristics]
It has small 1. volume, high luminous efficiency, long service life, good starting performance and simple additional power supply.
2. according to the characteristics of different brands of light bulbs, corresponding research and development, high brightness, good effect, simple maintenance, long life;
3. the wick is made of high purity quartz with high pressure resistance and can withstand 200 standard atmospheres, equivalent to 3 gas tanks or 2 oxygen tubes.
The 4. projection lamp is composed of spherical shell, special gas and electrode, which is made of high technology, high temperature resistance and high pressure resistance.
5. good optical performance, long service life and suitable power consumption.
6. with high reflective properties as the lamp Reflector, and light emission is good, and has high mechanical strength and good explosion-proof performance;
Applicable to various projector projectors
[comprehensive introduction]
The precision spot type multimedia projection wick has the advantages of small volume, high luminous efficiency, long service life, good starting performance and simple additional power supply, and is corresponding to the development according to the characteristics of different brand bulbs. It has the characteristics of high brightness, good effect, simple maintenance, long life and so on. The fine spot type multimedia projection wick is developed according to the characteristics of different brand bulbs. It has the characteristics of small volume, high luminous efficiency, long service life, good starting performance and simple additional power supply, and is suitable for various projector projectors.
[instructions]
Use the projector to ensure that the external environment of the projector is beneficial to heat dissipation. In use, there is no cover on the projector. Keep the electricity to cool the bulb for a period of time after use.
The projector opens the machine for a long time. After a long time, the manufacturer is invited to clean up the dust regularly to ensure heat dissipation and stability.
Do not buy low price, unguaranteed products. Don't take down the projector at random. The installation not in the lampshade, lamp cup, especially fingerprint left on the wick, fingerprint containing grease, will cause thermal expansion caused by uneven explosion.
[product photos] [video data]
[homologous products] general projection wick, gold halogen type projection lamp, video projection
[specification parameter]

灯泡型号

Lamp Type

功率

Watts

W

工作电压

Operating Voltage

V

工作电流

Current

A

光通量

Lumens

lm

色温

Color Temp

K

光中心高度

Light  Center

Length

电弧长度

Effective Arc Length

L mm

泡壳直径

Bulb  Diam

D mm

寿命

Average Life

h

JYd120/D.C

120

75

1.5

7500

8000

32

1

9

2000

JYd120/A.C

120

75

1.5

7500

8000

31

1

9

2000

JYd150/D.C

150

75

2

9000

7500

35

1.2

11

2000

JYd150/A.C

150

75

2

9000

7500

33

1.2

11

2000

JYd200/D.C

200

75

2.6

12000

7500

35

1.5

12

2000

JYd200/A.C

200

75

2.6

12000

7500

33

1.5

12

2000

JYd275/D.C

275

75

3.6

16500

7200

35

1.8

13

2000

JYd275/A.C

275

75

3.6

16500

7200

33

1.8

13

2000

JYd350/D.C

350

75

4.6

19250

7200

37

2

14

2000

JYd400/D.C

400

75

5

22000

7200

37

2.2

15

2000
