[product name]. Full automatic microwave nonpolar ultraviolet lamp exhaust purifier
[product model] JYMQ
Microwave non polar ultraviolet lamp waste gas treatment equipment, waste gas treatment equipment, non polar ultraviolet lamp, exhaust gas, photocatalysis, photooxidation, ozone
Waste gas treatment
[technical principle]
1. the ultraviolet light in the specific band (185nm) band causes the oxygen molecules in the air to produce free oxygen, that is, the active oxygen. Because the free oxygen is not balanced with the positive and negative electrons, it is necessary to combine with oxygen molecules to produce ozone.
2. the ultraviolet ray of a specific band (253.7nm) decomposes the molecular chain of the odorous gas and breaks its large molecular structure into a small molecular structure.
3., ozone accelerates under the driving of microwave, and it can react quickly with exhaust gas. Another microwave can directly interrupt the long chain of organic waste gas and form small molecules such as carbon dioxide, water and oxygen.
4. under the action of catalyst (TiO2), ozone oxidizes the smashed odorous gas molecules into inorganic substances such as CO2 and H2O. The catalyst (titanium dioxide), when irradiated by ultraviolet light, produces highly reactive superoxide anion radicals and hydroxyl radicals, which attack organic matter and degrade organic matter. Titanium dioxide is a non dissolved material. It decomposes organic pollutants and sterilize completely, and does not decompose, insoluble and photocatalytic for long time. It has a lasting effect of sterilization and degradation of pollutants.
[product characteristics]
1. environmental protection: the equipment runs without noise and does not produce two pollution.
2. installation is simple: only need to connect the equipment to the pipe to complete the installation, full automatic operation free maintenance.
3. low cost of operation: equipment without any mechanical action, low energy consumption, no special management and daily maintenance, only need to make regular inspection.
4. long life: all stainless steel shell, fire protection, anti-corrosion performance, lamp life can be more than ten years.
5. high efficiency: the reaction time only needs 0.1S to start, rapid and effective.
6. stability: can meet the requirements of the Environmental Protection Bureau online monitoring, can work continuously for 24 hours, the operation is stable and reliable.
7. adaptable to a wide range: can be customized according to the actual situation, can apply any terrain space.
[application range]
Spray paint waste gas treatment, hospital waste gas treatment, rubber factory, fish meal factory, tannery plant, breeding farm, electroplating factory, waste treatment plant, chemical plant and so on.
[comprehensive introduction]
The automatic microwave endless JYMX-2 exhaust gas purifier is developed based on the microwave electrodeless ultraviolet lamp system. It has the advantages of simple installation, environmental protection, high efficiency, stability, long life and low running cost. It is an ideal equipment for waste gas treatment in industrial enterprises. The purifier uses 185nm and 253.7nm to generate ozone and interrupt organic macromolecular substances in two main ultraviolet bands. By catalyzing (TiO2), it accelerates the oxidation of ozone and oxidizes the molecules of malodorous gas and organic matter to CO2 and H2O. Waste gas treatment capacity is outstanding, no noise, no two pollution.
[instructions]

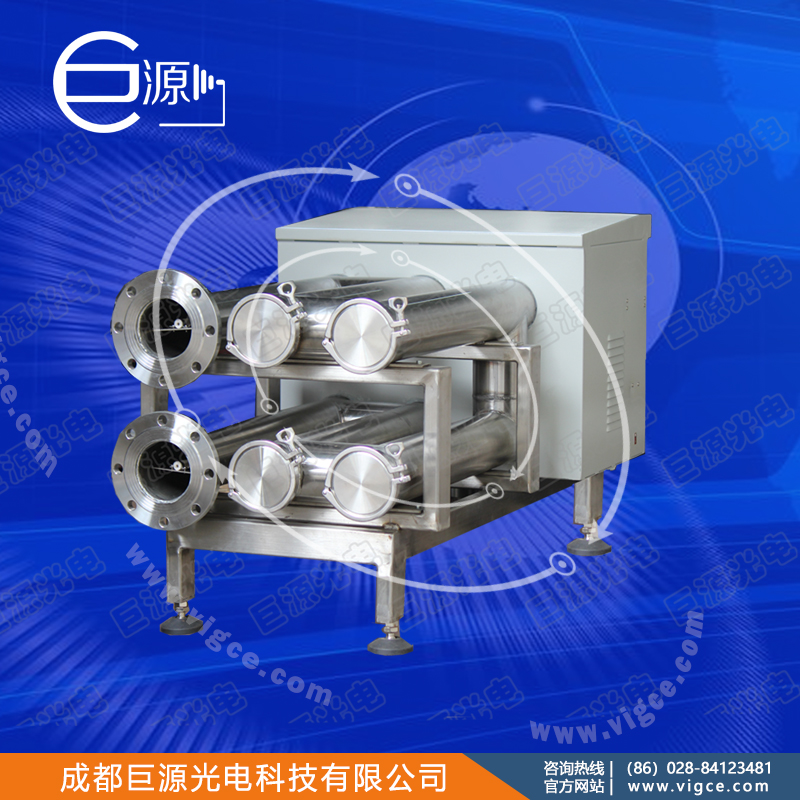

[product photo]
[video data]
[specification parameter]

Microwave Electrodeless  UV lamp waste gas treatment equipment

Product advantages:

1. Environmental protection: equipment running no noise, will not produce secondary pollution.

2. Installation is simple: only need to connect the device to the pipeline to complete the installation, fully automatic maintenance-free.

3. Low operating costs: the equipment without any mechanical action, low energy consumption, no special management and routine maintenance, only for regular inspection.

4. Long life: all stainless steel shell, fire, anti-corrosion performance, lamp life can be up to ten years..

5. High efficiency: in line with the national promulgated emission standards for odorous pollutants in 1993 (GB14554-93) and promulgated in 1996, "Integrated Emission Standards for Air Pollutants" (GB16297-1996).

6. Stable: to meet the requirements of the Environmental Protection Agency on-line monitoring, 24 hours of continuous work, stable and reliable operation.

7. Adapt to a wide range: according to the actual situation of the scene, can apply any terrain space.

Technical principles:

1. The specific wavelength (185nm) band of ultraviolet light to the oxygen molecules in the air to produce free oxygen, that isreactive oxygen. Due to free oxygen carrying positive and negative electronic imbalance, so the need to combine with the oxygen molecules, and then produce ozone.

2. The specific wavelength band (253.7nm) of ultraviolet light on the decomposition of the molecular chain of malodorous gas, the Big molecule structure broken into a small molecular structure.

3. Under the action of catalyst (TiO2), ozone oxidizes the broken malodorous molecules into inorganic materials such as CO2 and H2O. The catalyst (titanium dioxide) generates highly active superoxide anion radicals and Hydrogen Oxygen Free Radicals when exposed to ultraviolet light, attacking organic matter, to achieve the role of degradation of organic matter. Titanium dioxide is a non-dissolution material, in the decomposition of organic pollutants and sterilization at the same time, their own does not break down, insoluble,Light catalysis lastingand has a lasting sterilization, degradation of pollutants.

Use occasions

Paint processing, Hospital waste gas treatment, Rubber plant, Fish meal factory, Tannery, farms, Electroplating plants, Garbage treatment plants, Chemical plants and so on.
